ZWS75BAF-5/L

Active

TDK-LAMBDA

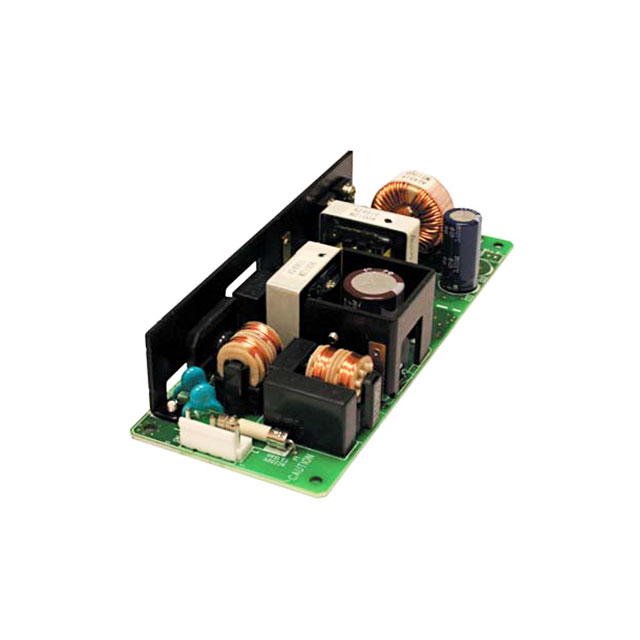

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZWS75BAF/L Spec Datasheet +4

ZWS75BAF-5/L

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 5 V

Deep-Dive with AI

DocumentsZWS75BAF/L Spec Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZWS75BAF-5/L

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	15 A
Efficiency	84 %
Features	Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	75 W
Size / Dimension [x]	5.9 in
Size / Dimension [x]	150 mm
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Type	Open Frame
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

ZWS75BAF Series

Part	Number of Outputs	Type	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Features	Current - Output 1	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Voltage - Isolation	Efficiency
TDK-LAMBDA ZWS75BAF-15/A	1	Enclosed	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output PFC Universal Input	5 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	15 V	3000 V	86 %
TDK-LAMBDA ZWS75BAF-12/A	1	Enclosed	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output PFC Universal Input	6.3 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	12 V	3000 V	85 %
TDK-LAMBDA ZWS75BAF-5/CO2	1	Conformal Coated Open Frame	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	15 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	5 V	3000 V	84 %
TDK-LAMBDA ZWS75BAF-5/L	1	Open Frame	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	15 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	5 V	3000 V	84 %
TDK-LAMBDA ZWS75BAF-12/CO2	1	Conformal Coated Open Frame	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	6.3 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	12 V	3000 V	85 %
TDK-LAMBDA ZWS75BAF-15/L	1	Open Frame	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	5 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	15 V	3000 V	86 %
TDK-LAMBDA ZWS75BAF-48/CO2	1	Conformal Coated Open Frame	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1.6 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	48 V	3000 V	88 %
TDK-LAMBDA ZWS75BAF-24/A	1	Enclosed	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output PFC Universal Input	3.2 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	24 V	3000 V	87 %
TDK-LAMBDA ZWS75BAF-48/A	1	Enclosed	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output PFC Universal Input	1.6 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	48 V	3000 V	88 %
TDK-LAMBDA ZWS75BAF-3/A	1	Enclosed	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	CE	Adjustable Output PFC Universal Input	15 A	75 W	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	3.3 V	3000 V	78 %
