3021069F0GN(R)
ActiveGlobTek, Inc.
CORD 18AWG NEMA 5-15P TO CBL 9'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3021069F0GN(R)
ActiveGlobTek, Inc.
CORD 18AWG NEMA 5-15P TO CBL 9'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3021069F0GN(R) |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | Cable |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Green |
| Cord Type | SJT |
| Current Rating (Amps) | 10 A |
| Length | 2.74 m |
| Length | 9 ' |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Male Pins (Blades) to Leads |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.41 | |
| 10 | $ 7.61 | |||
| 25 | $ 7.18 | |||
| 50 | $ 7.01 | |||
| 100 | $ 6.66 | |||
| 300 | $ 5.96 | |||
| 500 | $ 5.61 | |||
| 1000 | $ 4.91 | |||
Description
General part information
3021069 Series

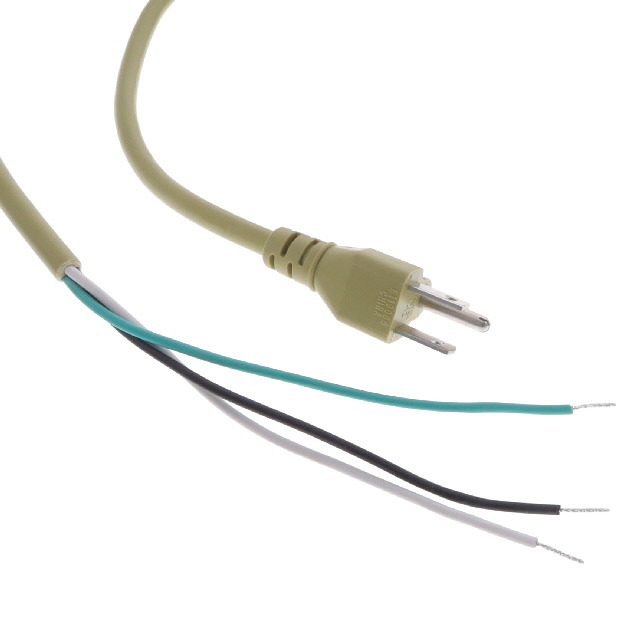

9.00' (2.74m) Power Cord Green NEMA 5-15P To Cable SJT
