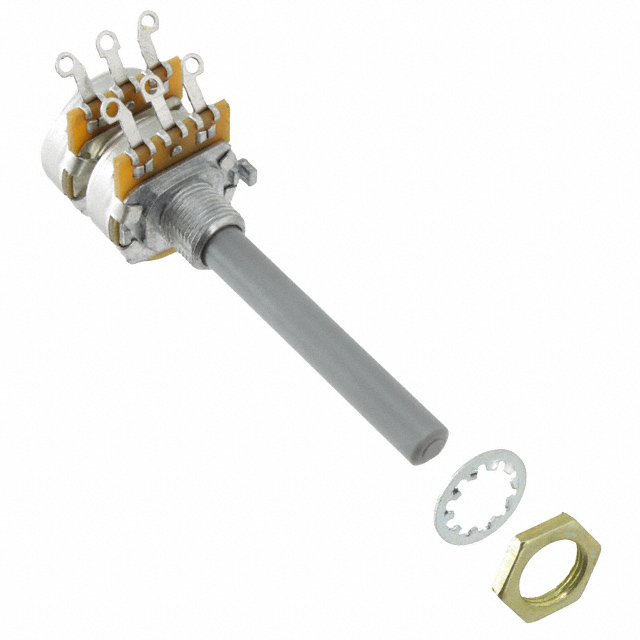

27ESA103MMF50NF
ActiveTE Connectivity Passive Product
POT 10K OHM 0.4W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
27ESA103MMF50NF
ActiveTE Connectivity Passive Product
POT 10K OHM 0.4W CARBON LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 27ESA103MMF50NF |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Actuator Length [z] | 50 mm |
| Actuator Length [z] | 1.969 in |
| Actuator Type | Flatted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Number of Gangs | 2 |
| Number of Turns | 1 |
| Power (Watts) | 0.4 W |
| Resistance (Ohms) | 10k |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Taper | Linear |
| Temperature Coefficient | 5 % |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 4.79 | |
Description
General part information
27ESA Series
10k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.4W Solder Lug
