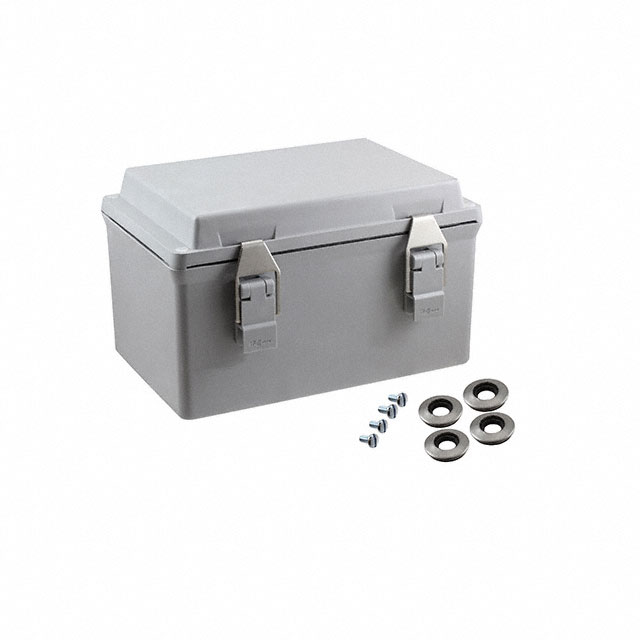

A1066JFGQRR

Obsolete

Hoffman Enclosures, Inc.

JUNCTION BOX 10"L X 5.98"W

Search across all available documentation for this part.

Obsolete

Hoffman Enclosures, Inc.

JUNCTION BOX 10"L X 5.98"W

Technical Specifications

Parameters and characteristics for this part

Specification	A1066JFGQRR

Area (L x W) [custom]	59.8 in²
Area (L x W) [custom]	386 cm²
Color	Gray
Container Type	Junction Box
Design	Hinged Door, Lid
Features	PCB Supports, Sealing Gasket
Height [z]	5.984 in
Height [z]	152 mm
Material	Fiberglass/Polyester
Ratings	UL-508A, NEMA 12, NEMA 3R, NEMA 13, NEMA 3, NEMA 4X, IP66, NEMA 4
Size / Dimension [x]	10 in
Size / Dimension [x]	254 mm
Size / Dimension [y]	152 mm
Size / Dimension [y]	5.984 in
Weight	2 kg
Weight	4.5 lbs

Part	Design	Weight	Weight	Features	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]	Height [z]	Height [z]	Color	Ratings	Material
Hoffman Enclosures, Inc. A1066JFGQRR	Hinged Door Lid	2 kg	4.5 lbs	PCB Supports Sealing Gasket	Junction Box	152 mm	10 in	5.984 in	254 mm	59.8 in²	386 cm²	5.984 in	152 mm	Gray	IP66 NEMA 12 NEMA 13 NEMA 3 NEMA 3R NEMA 4 NEMA 4X UL-508A	Fiberglass/Polyester

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Fiberglass/Polyester Gray Hinged Door, Lid 10.000" L x 5.984" W (254.00mm x 152.00mm) X 5.984" (152.00mm)
