EP2-9

Active

SAB North America

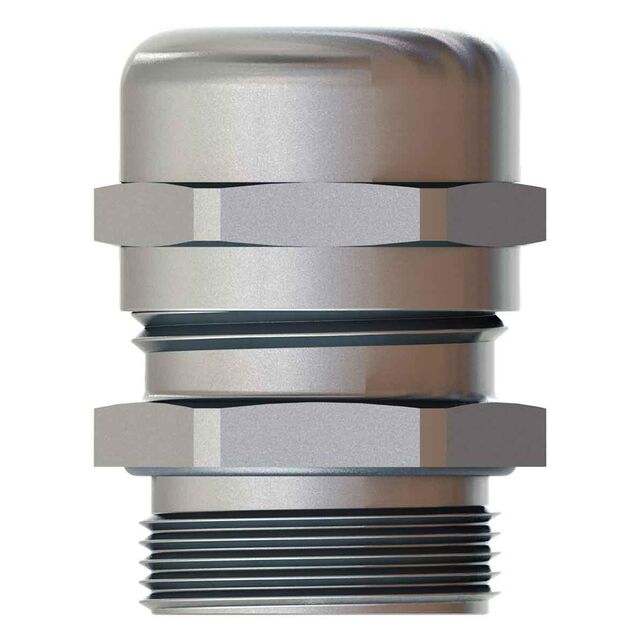

CABLE GLAND 4-8MM PG9 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EP2-9

Active

SAB North America

CABLE GLAND 4-8MM PG9 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EP2-9

Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Panel Hole Size	0.598 in
Panel Hole Size	15.2 mm
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	PG9
Type	Cable Gland

- Series

Part	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Color	Thread Size	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Panel Hole Size	Panel Hole Size	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Accessory Type	Outside Cable Diameter (Max)	Includes
SAB North America EN4-1/2C-2	Brass Nickel Plated	7.5 mm	0.295 in	Cable Gland	Silver	1/2" NPT	8 mm	0.315 in	IP68 - Dust Tight Waterproof	14 mm	0.551 "	0.84 in	21.3 mm	100 °C	-20 C
SAB North America EM2-20	Brass Nickel Plated			Cable Gland	Silver	M20x1.5	8 mm	0.315 in	IP68 - Dust Tight Waterproof			0.787 in	20 mm	100 °C	-20 C	6 mm	0.236 in	0.472 in	12 mm
SAB North America EM2-32	Brass Nickel Plated			Cable Gland	Silver	M32x1.5	9 mm	0.354 in	IP68 - Dust Tight Waterproof			1.26 in	32 mm	100 °C	-20 C		0.512 in	0.709 in	18.01 mm	13 mm
SAB North America EP2-21	Brass Nickel Plated			Cable Gland	Silver	PG21	7.2 mm	0.283 in	IP68 - Dust Tight Waterproof			1.114 in	28.3 mm	100 °C	-20 C		0.512 in	0.709 in	18.01 mm	13 mm
SAB North America OR-40	Nitrile Butadiene Rubber (NBR)																				Sealing Ring
SAB North America EP2-9	Brass Nickel Plated	4 mm	0.157 in	Cable Gland	Silver	PG9	6 mm	0.236 in	IP68 - Dust Tight Waterproof			0.598 in	15.2 mm	100 °C	-20 C			0.315 in	8 mm
SAB North America EM2-40	Brass Nickel Plated			Cable Gland	Silver	M40x1.5	9 mm	0.354 in	IP68 - Dust Tight Waterproof			1.575 in	40 mm	100 °C	-20 C	18.01 mm	0.709 in	0.984 in				25 mm
SAB North America EP4-42	Brass Nickel Plated			Cable Gland	Silver	PG42	12 mm	0.472 in	IP68 - Dust Tight Waterproof			2.126 in	54 mm	100 °C	-20 C	30 mm	1.181 in	1.496 in	38 mm				O-Ring
SAB North America EP2-7	Brass Nickel Plated			Cable Gland	Silver	PG7	6 mm	0.236 in	IP68 - Dust Tight Waterproof			0.492 in	12.5 mm	100 °C	-20 C	3 mm	0.118 in	0.256 "	6.5 mm
SAB North America EM4-32	Brass Nickel Plated	16 mm	0.63 in	Cable Gland	Silver	M32x1.5	9 mm	0.354 in	IP68 - Dust Tight Waterproof			1.26 in	32 mm	100 °C	-20 C			0.984 in				25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.68
		25	$ 10.43
		50	$ 10.00
		100	$ 9.36
		250	$ 8.67
		500	$ 7.97
		1000	$ 7.28

Description

General part information

- Series

Cable Gland Brass, Nickel Plated PG9 Silver
