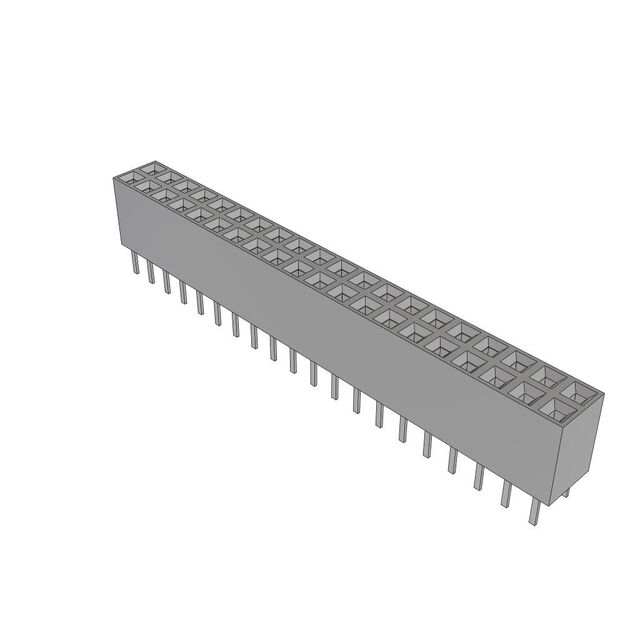

BCS-120-L-D-DE
ActiveSamtec Inc.
CONN RCPT 40POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
BCS-120-L-D-DE
ActiveSamtec Inc.
CONN RCPT 40POS 0.1 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BCS-120-L-D-DE |
|---|---|
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 4.6 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 7.37 mm |
| Insulation Height | 0.29 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 475 VAC |
BCS-120 Series
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Connector Type | Contact Shape | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Insulation Color | Material Flammability Rating | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Contact Finish - Mating | Mounting Type | Contact Type | Insulation Height | Insulation Height | Fastening Type | Current Rating (Amps) | Contact Finish - Post | Contact Material | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 2.54 mm | 0.1 in | Solder | Receptacle Bottom or Top Entry | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 40 | 0.12 in | 3.05 mm | -55 °C | 125 °C | 2 | 10 çin | 0.25 çm | 475 VAC | Gold | Through Hole | Female Socket | 7.37 mm | 0.29 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | |||||
Samtec Inc. | 2.54 mm | 0.1 in | Solder | Receptacle | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 40 | -55 °C | 125 °C | 2 | 475 VAC | Through Hole | Female Socket | 7.37 mm | 0.29 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | 0.122 " | 3.1 mm | ||||||||
Samtec Inc. | Solder | Pass Through Receptacle | Square | 0.1 in | 2.54 mm | Black | UL94 V-0 | 20 | -55 °C | 125 °C | 1 | 10 çin | 0.25 çm | 475 VAC | Gold | Through Hole | Female Socket | 7.37 mm | 0.29 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | 0.128 " | 3.25 mm | 19 | |||||||
Samtec Inc. | 2.54 mm | 0.1 in | Solder | Pass Through Receptacle | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 40 | -55 °C | 125 °C | 2 | 30 Áin | 0.76 Ám | 475 VAC | Gold | Through Hole | Female Socket | 7.37 mm | 0.29 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | 0.128 " | 3.25 mm | |||||
Samtec Inc. | Solder | Receptacle | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 20 | 0.12 in | 3.05 mm | -55 °C | 125 °C | 1 | 10 çin | 0.25 çm | 475 VAC | Gold | Through Hole | Female Socket | 7.37 mm | 0.29 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | 1.27 µm | 50 µin | |||||
Samtec Inc. | 2.54 mm | 0.1 in | Solder | Receptacle | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 40 | 0.125 in | 3.18 mm | -55 °C | 125 °C | 2 | 30 Áin | 0.76 Ám | 475 VAC | Gold | Through Hole Right Angle | Female Socket | 5.33 mm | 0.21 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | |||||
Samtec Inc. | 2.54 mm | 0.1 in | Solder | Pass Through Receptacle | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 40 | -55 °C | 125 °C | 2 | 30 Áin | 0.76 Ám | 475 VAC | Gold | Through Hole | Female Socket | 7.37 mm | 0.29 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | 0.128 " | 3.25 mm | |||||
Samtec Inc. | Solder | Receptacle | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 20 | -55 °C | 125 °C | 1 | 30 Áin | 0.76 Ám | 475 VAC | Gold | Through Hole | Female Socket | 7.37 mm | 0.29 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | 0.122 " | 3.1 mm | |||||||
Samtec Inc. | 2.54 mm | 0.1 in | Solder | Receptacle | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 40 | 0.125 in | 3.18 mm | -55 °C | 125 °C | 2 | 10 çin | 0.25 çm | 475 VAC | Gold | Through Hole Right Angle | Female Socket | 5.33 mm | 0.21 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | |||||
Samtec Inc. | Solder | Pass Through Receptacle | Square | All | 0.1 in | 2.54 mm | Black | UL94 V-0 | 20 | -55 °C | 125 °C | 1 | 3 µin | 0.076 µm | 475 VAC | Gold | Through Hole | Female Socket | 7.37 mm | 0.29 in | Push-Pull | 4.6 A | Tin | Phosphor Bronze | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 11 | $ 7.29 | |
Description
General part information
BCS-120 Series
40 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
