0190720051

Active

Molex

CONN RING CIRC 14-16AWG #5/16

Search across all available documentation for this part.

Active

Molex

CONN RING CIRC 14-16AWG #5/16

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Terminal Type	Thickness	Thickness	Contact Material	Length - Overall [x]	Length - Overall	Insulation	Stud/Tab Size	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Stud/Tab Size	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]
Molex 0190720074	Free Hanging (In-Line)	Circular	0.031 in	0.79 mm	Copper	0.84 in	21.34 mm	Insulated	10 Stud	Electro-Tin	7.92 mm	0.312 in	Crimp
Molex 0190720051	Free Hanging (In-Line)	Circular	0.031 in	0.79 mm	Copper	1.231 in	31.27 mm	Insulated	0.3125 Stud	Electro-Tin			Crimp
Molex 0190720048	Free Hanging (In-Line)	Circular	0.031 in	0.79 mm	Copper	1.231 in	31.27 mm	Insulated		Electro-Tin			Crimp	3/8 Stud
Molex 0190720101	Free Hanging (In-Line)	Circular	0.04 in	1.02 mm	Copper	1.036 in		Insulated	10 Stud	Electro-Tin			Crimp		5.72 mm	0.225 "	12 AWG	10 AWG	0.375 in	9.53 mm	26.31 mm
Molex 0190720016	Free Hanging (In-Line)	Circular	0.028 in	0.71 mm	Copper	0.814 in		Non-Insulated	10 Stud	Electro-Tin	7.92 mm	0.312 in	Crimp		3.56 mm	0.14 in	22 AWG	17.5 AWG			20.68 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

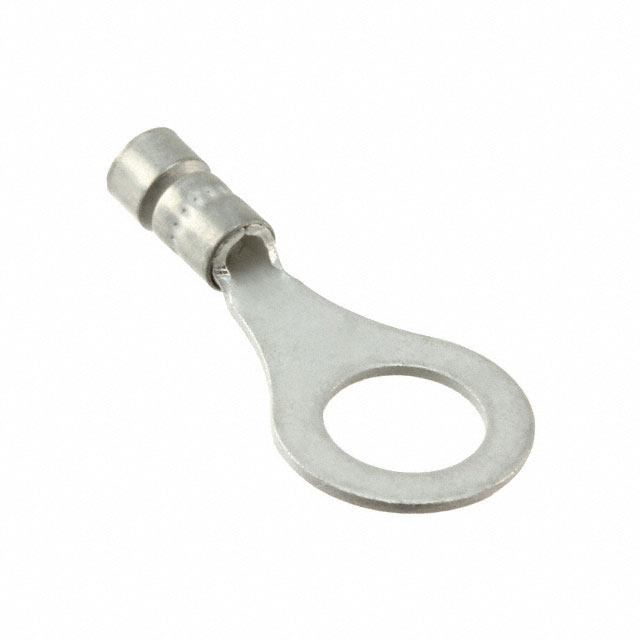

Ring Terminal Connector 5/16 Stud Circular 14-16 AWG Crimp
