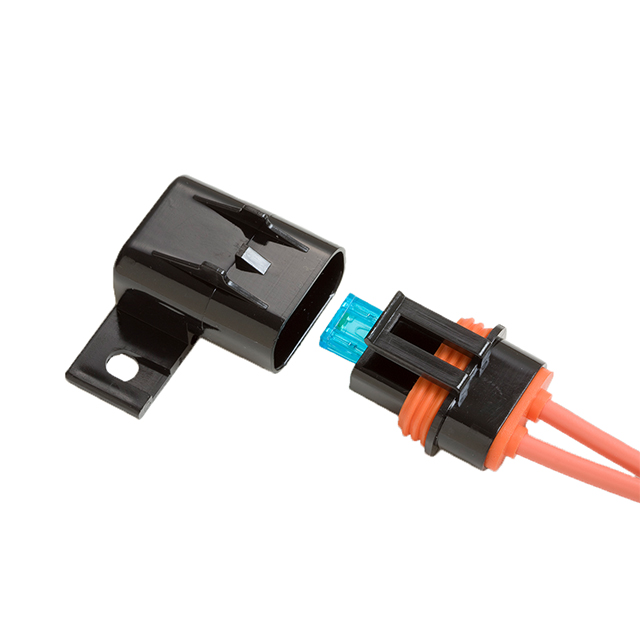

LPM-05B-12OR
ActiveOptiFuse
MINI FUSEHOLDER, 30A-12AWG ORG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPM-05B-12OR
ActiveOptiFuse
MINI FUSEHOLDER, 30A-12AWG ORG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPM-05B-12OR |
|---|---|
| Contact Finish | Tin Nickel |
| Contact Material | Bronze |
| Current Rating (Amps) | 12 A |
| For Use With/Related Products | APM, ANM |
| Fuse Size [x] | 0.433 " |
| Fuse Size [x] | 11 mm |
| Fuse Size [y] | 0.152 " |
| Fuse Size [y] | 3.85 mm |
| Fuse Type | Blade |
| Fuseholder Type | Holder |
| Mounting Type | Free Hanging (In-Line) |
| Number of Circuits | 1 |
| Termination Style | Wire Leads |
| Voltage | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.80 | |
| 10 | $ 8.51 | |||
| 25 | $ 8.18 | |||
| 50 | $ 6.40 | |||
| 100 | $ 5.23 | |||
| 250 | $ 5.11 | |||
| 500 | $ 4.26 | |||
| 1000 | $ 4.00 | |||
Description
General part information
LPM-05B Series
Fuse Holder 12 A 32V 1 Circuit Blade Free Hanging (In-Line)
