07S,AL

Active

Serpac

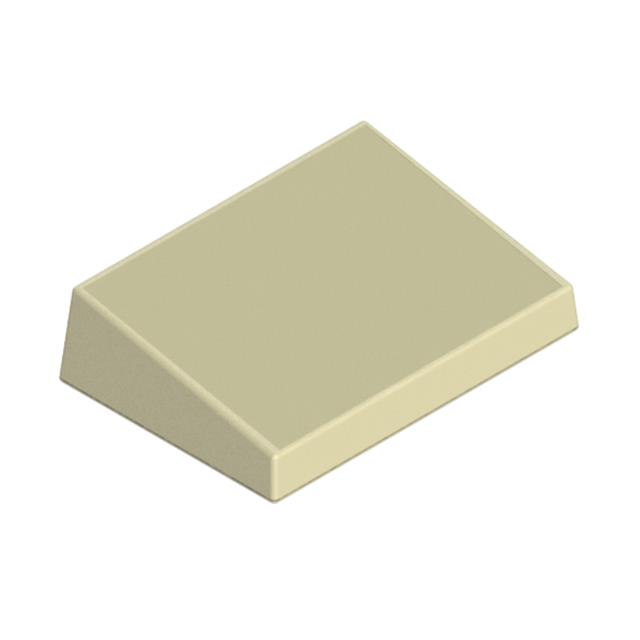

BOX ABS ALMOND 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	07S,AL

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Almond
Container Type	Box
Design	Split Sides and Slanted Top
Features	PCB Supports
Height [z]	1.86 in
Height [z]	47.24 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.363 lb
Weight	164.65 g

Part	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Material Flammability Rating	Features	Material	Color	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Ratings	Thickness	Thickness	Weight	Weight	Area (L x W) [custom]	Area (L x W) [custom]
Serpac 07S,AL	1.86 in	47.24 mm	33.6 in²	217 cm²	UL94 HB	PCB Supports	Plastic ABS	Almond	Box	123.95 mm	174.75 mm	4.88 in	6.88 in	Split Sides and Slanted Top	IP40	2.54 mm	0.1 in	0.363 lb	164.65 g
Serpac 07S,GY	1.86 in	47.24 mm			UL94 HB	PCB Supports	Plastic ABS	Gray	Box	123.95 mm	174.75 mm	4.88 in	6.88 in	Split Sides and Slanted Top	IP40	2.54 mm	0.1 in	0.363 lb	164.65 g	217 cm˛	33.6 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond Split Sides and Slanted Top 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.860" (47.24mm)
