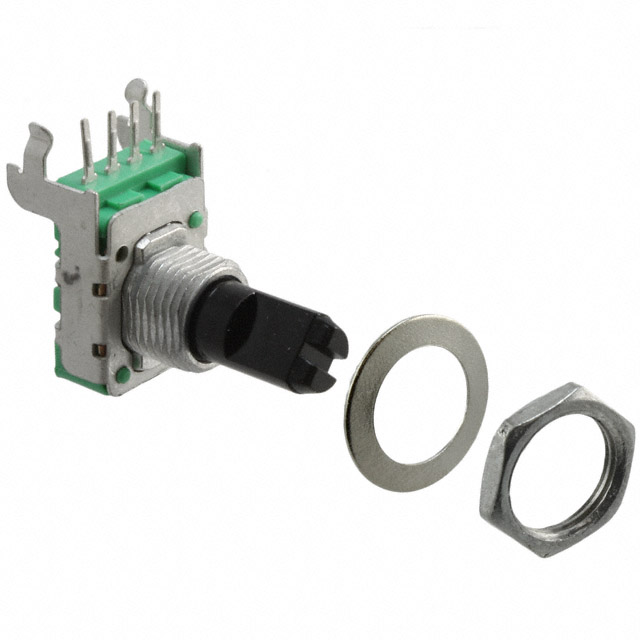

P110KV1-1F15BR100K

Active

TT Electronics/BI

POT 100K OHM 1/20W PLASTIC LIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P110KV1-1F15BR100K

Active

TT Electronics/BI

POT 100K OHM 1/20W PLASTIC LIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P110KV1-1F15BR100K

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	15 mm
Actuator Length [z]	0.591 in
Actuator Type	Flatted
Adjustment Type	Side Adjustment
Built in Switch	Detent
Bushing Thread	M9 x 0.75
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance (Ohms)	100 kOhms
Resistive Material	Conductive Plastic
Rotation	300 ░
Size - Body [x]	15.9 mm
Size - Body [x]	0.626 "
Size - Body [y]	0.472 in
Size - Body [y]	12 mm
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

P110K Series

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistance (Ohms)	Taper	Actuator Type	Actuator Length [z]	Actuator Length [z]	Number of Gangs	Rotation	Termination Style	Number of Turns	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Mounting Type	Adjustment Type	Tolerance	Built in Switch	Power (Watts)	Power (Watts)	Resistive Material	Resistance (Ohms)	Actuator Length	Bushing Thread	Actuator Length [x]	Actuator Length [x]
TT Electronics/BI P110KH-1F20AR500	0.236 in	6 mm	500 Ohms	Logarithmic	Flatted	20 mm	0.787 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "	Through Hole	Top Adjustment	20 %	Detent	0.05 W	50 mW	Conductive Plastic
TT Electronics/BI P110KH-0Y20BR10K	0.236 in	6 mm		Linear	Knurled	20 mm	0.787 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "	Through Hole	Top Adjustment	20 %		0.05 W	50 mW	Conductive Plastic	10k
TT Electronics/BI P110KV1-1F15BR100K	0.236 in	6 mm	100 kOhms	Linear	Flatted		0.591 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "		Side Adjustment	20 %	Detent	0.05 W	50 mW	Conductive Plastic		15 mm	M9 x 0.75
TT Electronics/BI P110KH-1F20AR500K	0.236 in	6 mm	500 kOhms	Logarithmic	Flatted	20 mm	0.787 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "	Through Hole	Top Adjustment	20 %	Detent	0.05 W	50 mW	Conductive Plastic
TT Electronics/BI P110KV-0Y15BR10K	0.236 in	6 mm		Linear	Knurled		0.591 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "	Through Hole	Side Adjustment	20 %		0.05 W	50 mW	Conductive Plastic	10k	15 mm
TT Electronics/BI P110KH1-1F15BR10K	0.236 in	6 mm		Linear	Flatted		0.591 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "		Top Adjustment	20 %	Detent	0.05 W	50 mW	Conductive Plastic	10k	15 mm	M9 x 0.75
TT Electronics/BI P110KH1-1F15BR200K	0.236 in	6 mm		Linear	Flatted		0.591 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "		Top Adjustment	20 %	Detent	0.05 W	50 mW	Conductive Plastic		15 mm	M9 x 0.75
TT Electronics/BI P110KV1-0F25AR10K	0.236 in	6 mm		Logarithmic	Flatted			1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "		Side Adjustment	20 %		0.05 W	50 mW	Conductive Plastic	10k		M9 x 0.75	0.984 in	25 mm
TT Electronics/BI P110KV1-0Y20CR1K	0.236 in	6 mm	1 kOhms	Reverse Logarithmic	Knurled	20 mm	0.787 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "		Side Adjustment	20 %		0.05 W	50 mW	Conductive Plastic			M9 x 0.75
TT Electronics/BI P110KH-0F20BR10K	0.236 in	6 mm		Linear	Flatted	20 mm	0.787 in	1	300 ░	Board Locks PC Pins	1	15.9 mm	0.472 in	12 mm	0.626 "	Through Hole	Top Adjustment	20 %		0.05 W	50 mW	Conductive Plastic	10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.27
		10	$ 1.99
		25	$ 1.79
		40	$ 1.72
		80	$ 1.65
		100	$ 1.21
		230	$ 1.58
		440	$ 1.30
		500	$ 1.07
		1440	$ 1.24
		5760	$ 1.03

Description

General part information

P110K Series

100k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
