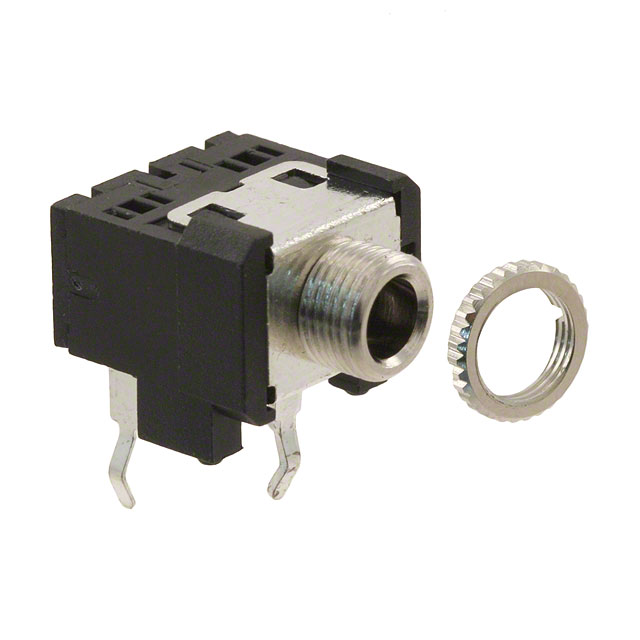

SJ1-3543

Active

CUI Devices

CONN JACK STEREO 3.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJ1-3543

Active

CUI Devices

CONN JACK STEREO 3.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJ1-3543

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Silver, Black
Body Material	Brass
Connector Type	Phone Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Tin, Nickel
Current Rating (Amps)	1 A
Features	Thread Lock, Mounting Hardware
Gender	Female
Housing Material	Polybutylene Terephthalate (PBT)
Includes	1 Nut, 1 Connector
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mating Length/Depth	0.551 in
Mating Length/Depth	14 mm
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Hole Size	5.99 mm
Panel Hole Size	0.236 in
Shielding	Unshielded
Signal Lines	Stereo
Termination	Kinked Pin
Thread Size	M6
Voltage - Rated	12 VDC

SJ1-35 Series

Part	Voltage - Rated	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material - Plating	Housing Material	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Internal Switch(s)	Termination	Contact Material	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mounting Type	Shielding	Mating Length/Depth	Mating Length/Depth	Current Rating (Amps)	Signal Lines	Body Material	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Panel Hole Size	Panel Hole Size	Includes	Features	Thread Size
CUI Devices SJ1-3554NG	12 VDC	3	4	Tin	Polybutylene Terephthalate (PBT)	Female	-25 °C	85 °C	Phone Jack	Black	0.142 in	3.6 mm	Single Switch	Kinked Pin	Brass Copper Alloy	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo
CUI Devices SJ1-3515N	12 VDC	3	5	Tin	Polybutylene Terephthalate (PBT)	Female	-25 °C	85 °C	Phone Jack	Black Silver	0.142 in	3.6 mm	Two Switches	Solder Eyelet(s)	Brass	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo	Brass
CUI Devices SJ1-3523N	12 VDC	3	3		Polybutylene Terephthalate (PBT)	Female			Phone Jack	Black Silver	0.142 in	3.6 mm		Solder		0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo	Brass
CUI Devices SJ1-3525NG-GR	12 VDC	3	5		Polybutylene Terephthalate (PBT)	Female	-25 °C	85 °C	Phone Jack	Green	0.142 in	3.6 mm	Two Switches	Solder	Brass Copper Alloy Stainless Steel	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo		Silver
CUI Devices SJ1-3525N	12 VDC	3	5	Tin	Polybutylene Terephthalate (PBT)	Female			Phone Jack	Black Silver	0.142 in	3.6 mm	Two Switches	Solder		0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo	Brass
CUI Devices SJ1-3543	12 VDC	3	3		Polybutylene Terephthalate (PBT)	Female	-25 °C	85 °C	Phone Jack	Black Silver	0.142 in	3.6 mm		Kinked Pin	Brass Copper Alloy	0.141 "	0.125 "	3.5 mm	Panel Mount Right Angle Through Hole	Unshielded	0.551 in	14 mm	1 A	Stereo	Brass		Nickel Tin	5.99 mm	0.236 in	1 Connector 1 Nut	Mounting Hardware Thread Lock	M6
CUI Devices SJ1-3515-SMT-TR-BE	12 VDC	3	5		Polyamide (PA6T) Nylon 6T	Female	-25 °C	85 °C	Phone Jack	Blue	0.142 in	3.6 mm	Two Switches	Solder	Brass Copper Alloy	0.141 "	0.125 "	3.5 mm	Surface Mount Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo		Gold					Board Guide
CUI Devices SJ1-3515-SMT-TR-PI	12 VDC	3	5		Polyamide (PA6T) Nylon 6T	Female	-25 °C	85 °C	Phone Jack	Pink	0.142 in	3.6 mm	Two Switches	Solder	Brass Copper Alloy	0.141 "	0.125 "	3.5 mm	Surface Mount Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo		Gold					Board Guide
CUI Devices SJ1-3523NG	12 VDC	3	3		Polybutylene Terephthalate (PBT)	Female	-25 °C	85 °C	Phone Jack	Black	0.142 in	3.6 mm		Solder	Brass Copper Alloy Stainless Steel	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo		Silver
CUI Devices SJ1-3545N	12 VDC	3	5		Polybutylene Terephthalate (PBT)	Female	-25 °C	85 °C	Phone Jack	Black	0.142 in	3.6 mm	Two Switches	Kinked Pin	Brass Copper Alloy	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Unshielded	0.551 in	14 mm	1 A	Stereo	Brass		Nickel Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.98
		10	$ 1.72
		25	$ 1.65
		50	$ 1.61
		100	$ 1.54
		300	$ 1.39
		500	$ 1.28
		1000	$ 1.10
		2500	$ 1.03

Description

General part information

SJ1-35 Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
