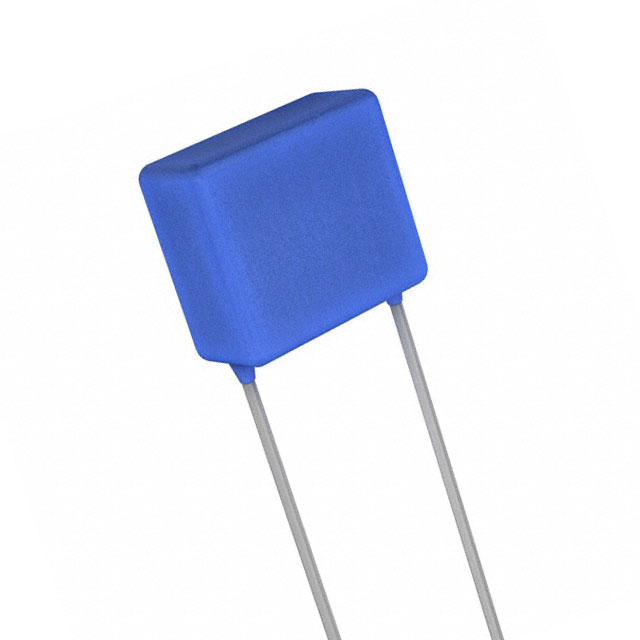

10HV24B104KN - HV24

10HV24B104KN

Active
KEMET

CAP CER 0.1UF 1KV X7R RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_C1107_HV_RAD_IND.pdf10HV24B104KN Spec+1
10HV24B104KN - HV24

10HV24B104KN

Active
KEMET

CAP CER 0.1UF 1KV X7R RADIAL

Deep-Dive with AI

DocumentsKEM_C1107_HV_RAD_IND.pdf10HV24B104KN Spec+1

Technical Specifications

Parameters and characteristics for this part

Specification10HV24B104KN
ApplicationsSMPS Filtering
Capacitance100000 pF
FeaturesHigh Voltage
Height - Seated (Max) [Max] [z]12.7 mm
Height - Seated (Max) [Max] [z]0.5 in
Lead Spacing12.06 mm
Lead Spacing0.475 in
Lead StyleStraight
Mounting TypeThrough Hole
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial
Size / Dimension [x]0.57 in
Size / Dimension [x]14.48 mm
Size / Dimension [y]0.271 "
Size / Dimension [y]6.89 mm
Temperature CoefficientX7R
Tolerance10 %
Voltage - Rated1 kV
Voltage - Rated1000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

10HV24B Series

0.1 µF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial
