97-3102A-20-4S

Active

Amphenol Industrial Operations

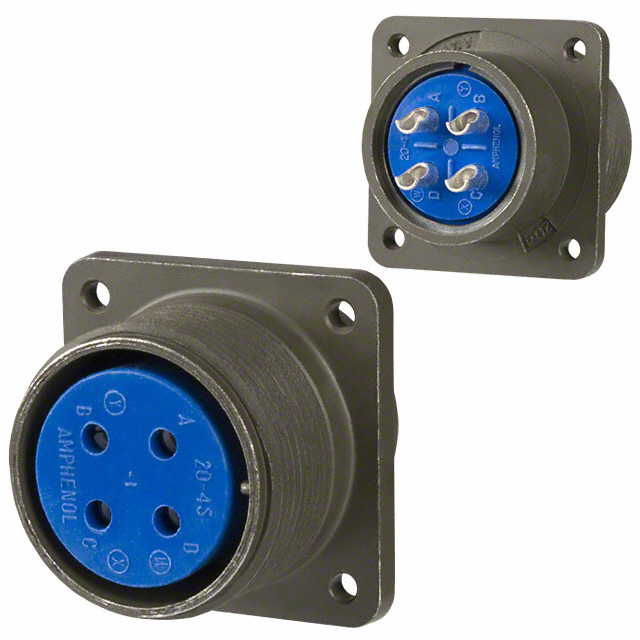

CONN RCPT FMALE 4P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3102A-20-4S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 4P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3102A-20-4S

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	20-4
Shielding	Unshielded

97-3102A20 Series

Part	Shell Finish	Applications	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Color	Shielding	Primary Material	Insert Material	Orientation	Contact Material	Shell Material	Contact Finish - Mating	Connector Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size - Insert	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]
Amphenol Industrial Operations 97-3102A20-29PZ	Olive Drab Chromate over Cadmium	Automotive Industrial	29	20	Olive Drab	Unshielded	Metal	Diallyl Phthalate (DAP)	Z	Copper Alloy	Aluminum Alloy	Silver	Receptacle Female Sockets	Flange	-55 °C	125 °C
Amphenol Industrial Operations 97-3102A-20-21S	Olive Drab Chromate over Cadmium	Automotive Industrial	21	20	Olive Drab	Unshielded	Metal	Diallyl Phthalate (DAP)	N	Copper Alloy	Aluminum Alloy	Silver	Receptacle Female Sockets	Flange	-55 °C	125 °C	9
Amphenol Industrial Operations 97-3102A-20-29S(946)	Black Zinc Alloy	Automotive Industrial	29	20	Black	Unshielded	Metal	Diallyl Phthalate (DAP)	N	Copper Alloy	Aluminum Alloy	Silver	Receptacle Female Sockets	Flange	-55 °C	125 °C
Amphenol Industrial Operations 97-3102A-20-4S	Olive Drab Chromate over Cadmium	Automotive Industrial			Olive Drab	Unshielded	Metal	Diallyl Phthalate (DAP)	N	Copper Alloy	Aluminum Alloy	Silver	Receptacle Female Sockets	Flange	-55 °C	125 °C	4	20-4
Amphenol Industrial Operations 97-3102A-20-16P(946)	Black Zinc Alloy	Automotive Industrial			Black	Unshielded	Metal	Diallyl Phthalate (DAP)	N	Copper Alloy	Aluminum Alloy	Silver	Male Pins Receptacle	Flange	-55 °C	125 °C	9		20	16
Amphenol Industrial Operations 97-3102A-20-4P(946)	Black Zinc Alloy	Automotive Industrial			Black	Unshielded	Metal	Diallyl Phthalate (DAP)	N	Copper Alloy	Aluminum Alloy	Silver	Male Pins Receptacle	Flange	-55 °C	125 °C	4	20-4
Amphenol Industrial Operations 97-3102A-20-3P	Olive Drab Chromate over Cadmium	Automotive Industrial			Olive Drab	Unshielded	Metal	Diallyl Phthalate (DAP)	N	Copper Alloy	Aluminum Alloy	Silver	Male Pins Receptacle	Flange	-55 °C	125 °C		20-3
Amphenol Industrial Operations 97-3102A-20-8S(689)	Electroless Nickel	Automotive Industrial	8	20	Silver	Unshielded	Metal	Diallyl Phthalate (DAP)	N	Copper Alloy	Aluminum Alloy	Silver	Receptacle Female Sockets	Flange	-55 °C	125 °C	6
Amphenol Industrial Operations 97-3102A20-27SY	Olive Drab Chromate over Cadmium	Automotive Industrial	27	20	Olive Drab	Unshielded	Metal	Diallyl Phthalate (DAP)	Y	Copper Alloy	Aluminum Alloy	Silver	Receptacle Female Sockets	Flange	-55 °C	125 °C	14
Amphenol Industrial Operations 97-3102A-20-15P(946)	Black Zinc Alloy	Automotive Industrial	15	20	Black	Unshielded	Metal	Diallyl Phthalate (DAP)	N	Copper Alloy	Aluminum Alloy	Silver	Male Pins Receptacle	Flange	-55 °C	125 °C	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.69
		10	$ 20.75
		25	$ 19.85
		50	$ 19.21
		100	$ 18.57
		250	$ 17.55
		500	$ 17.03

Description

General part information

97-3102A20 Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources
