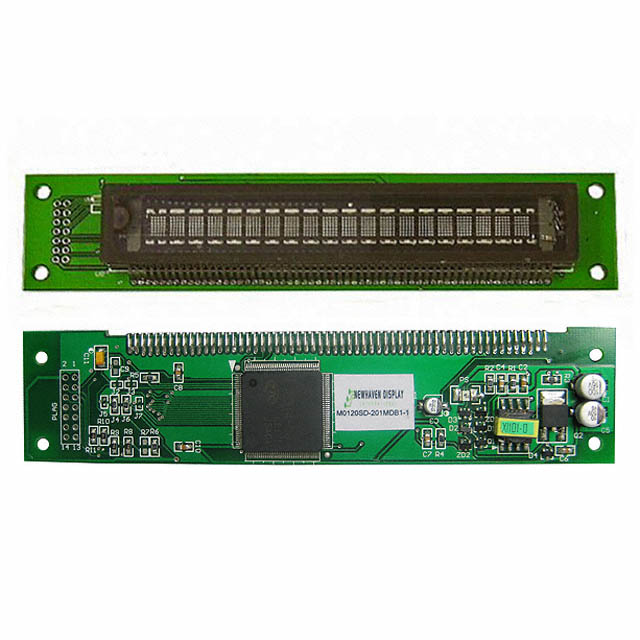

M0120SD-201MDBR1-1
ObsoleteNewhaven Display Intl
MODULE VF CHAR 1X20 4.9MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M0120SD-201MDBR1-1
ObsoleteNewhaven Display Intl
MODULE VF CHAR 1X20 4.9MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0120SD-201MDBR1-1 |
|---|---|
| Character Size [y] | 3.4 mm |
| Character Size [z] | 4.9 mm |
| Display Format [x] | 20 |
| Display Format [y] | 1 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 150 mm |
| Outline L x W x H [y] | 32 mm |
| Outline L x W x H [z] | 25.5 mm |
| Viewing Area [x] | 92.7 mm |
| Viewing Area [y] | 4.9 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M0120SD Series
Vacuum Fluorescent Display (VFD) 20 x 1 Character 4.5V ~ 5.5V 150.00mm x 32.00mm x 25.50mm
