LCM-S01602DTR/C

Active

Lumex Opto/Components Inc.

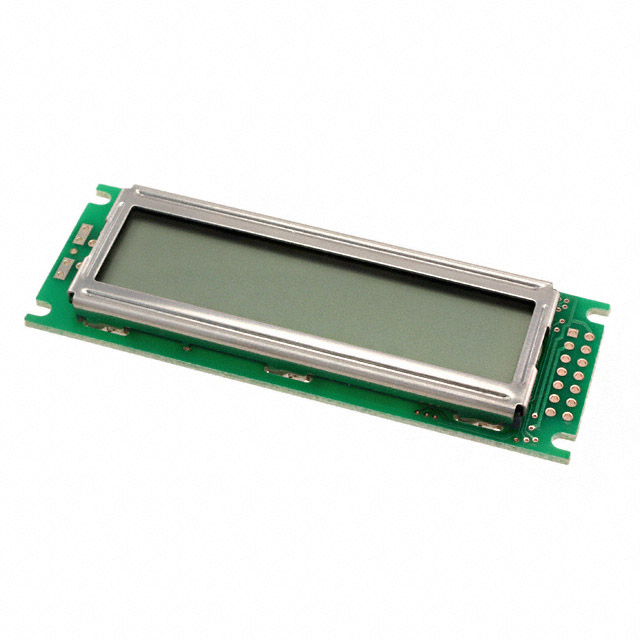

LCD MOD 32 DIG 16 X 2 REFLECTIVE

Deep-Dive with AI

Search across all available documentation for this part.

LCM-S01602DTR/C

Active

Lumex Opto/Components Inc.

LCD MOD 32 DIG 16 X 2 REFLECTIVE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCM-S01602DTR/C

Background Color	Green
Backlight	Without Backlight
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	2.96 mm
Character Size [z]	5.56 mm
Display Format [x]	16
Display Format [y]	2
Display Mode	Reflective
Display Type	TN - Twisted Nematic
Dot Size [x]	0.56 mm
Dot Size [y]	0.66 mm
Interface	Parallel
Number of Characters	32
Outline L x W x H [x]	85 mm
Outline L x W x H [y]	30 mm
Outline L x W x H [z]	8.9 mm
Viewing Area [x]	66 mm
Viewing Area [y]	16 mm

LCM-S01602 Series

Part	Character Format [y]	Character Format [x]	Display Mode	Viewing Area [x]	Viewing Area [y]	Character Size [z]	Character Size [y]	Display Format [y]	Display Format [x]	Dot Size [y]	Dot Size [x]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Backlight	Display Type	Number of Characters	Interface	Background Color
Lumex Opto/Components Inc. LCM-S01602DSF/AYVM	8 Dots	5 Dots	Transflective	66 mm	16 mm	5.56 mm	2.96 mm	2	16	0.66 mm	0.56 mm	12.7 mm	36 mm	80 mm	LED	STN - Super-Twisted Nematic	32
Lumex Opto/Components Inc. LCM-S01602DTF/B	8 Dots	5 Dots	Transflective	66 mm	16 mm	5.56 mm	2.96 mm	2	16	0.66 mm	0.56 mm	12.7 mm	44 mm	84 mm		TN - Twisted Nematic	32	Parallel
Lumex Opto/Components Inc. LCM-S01602DSR/A	8 Dots	5 Dots	Reflective	66 mm	16 mm	5.56 mm	2.96 mm	2	16	0.66 mm	0.56 mm	8.8 mm	36 mm	80 mm	Without Backlight	STN - Super-Twisted Nematic	32	Parallel	Green
Lumex Opto/Components Inc. LCM-S01602DTR/D	8 Dots	5 Dots	Reflective	99 mm	24 mm	9.63 mm	4.84 mm	2	16	1.16 mm	1.16 mm	8.8 mm	44 mm	122 mm	Without Backlight	TN - Twisted Nematic	32	Parallel
Lumex Opto/Components Inc. LCM-S01602DTR/C	8 Dots	5 Dots	Reflective	66 mm	16 mm	5.56 mm	2.96 mm	2	16	0.66 mm	0.56 mm	8.9 mm	30 mm	85 mm	Without Backlight	TN - Twisted Nematic	32	Parallel	Green
Lumex Opto/Components Inc. LCM-S01602DSR/I	8 Dots	5 Dots	Reflective	66 mm	16 mm	5.56 mm	2.96 mm	2	16	0.66 mm	0.56 mm	8.9 mm	44 mm	84 mm	Without Backlight	STN - Super-Twisted Nematic	32	Parallel
Lumex Opto/Components Inc. LCM-S01602DTR/E	8 Dots	5 Dots	Reflective	65 mm	16 mm	5.56 mm	2.96 mm	2	16	0.66 mm	0.56 mm	8.8 mm	44 mm	84 mm	Without Backlight	TN - Twisted Nematic	32	Parallel
Lumex Opto/Components Inc. LCM-S01602DSR/D	8 Dots	5 Dots	Reflective	99 mm	24 mm	9.63 mm	4.84 mm	2	16	1.16 mm	1.16 mm	8.8 mm	44 mm	122 mm	Without Backlight	STN - Super-Twisted Nematic	32	Parallel	Green
Lumex Opto/Components Inc. LCM-S01602DSR/C	8 Dots	5 Dots	Reflective	66 mm	16 mm	5.56 mm	2.96 mm	2	16	0.66 mm	0.56 mm	8.9 mm	30 mm	85 mm	Without Backlight	STN - Super-Twisted Nematic	32	Parallel	Green
Lumex Opto/Components Inc. LCM-S01602DSF/E	8 Dots	5 Dots	Transflective	65 mm	16 mm	5.56 mm	2.96 mm	2	16	0.66 mm	0.56 mm	12.7 mm	44 mm	84 mm		STN - Super-Twisted Nematic	32	Parallel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LCM-S01602 Series

Character Display Module Reflective 5 x 8 Dots TN - Twisted Nematic Without Backlight Parallel 85.00mm x 30.00mm x 8.90mm
