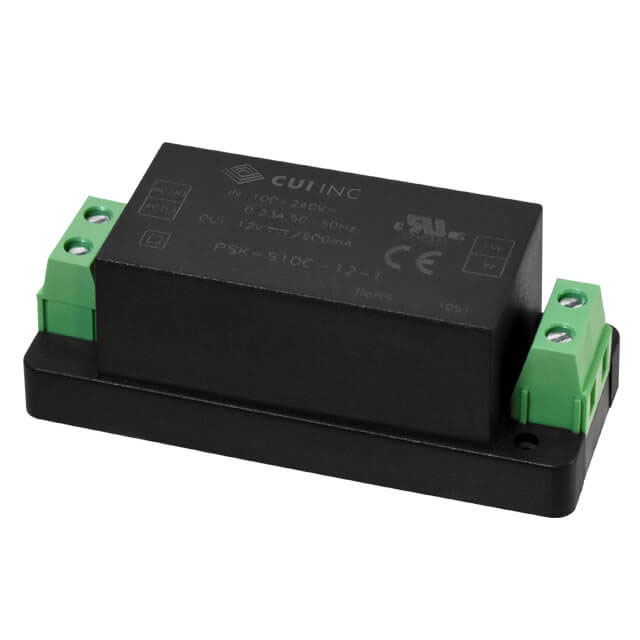

PSK-S10C-9-T

Obsolete

CUI Inc.

AC/DC CONVERTER 9V 10W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC CONVERTER 9V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	PSK-S10C-9-T

Applications	Household Appliances, ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output 1	1.1 A
Efficiency	80 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	10 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	1.09 "
Size / Dimension [z]	27.8 mm
Standard Number	55014-2, 60950-1, 61000-3-2, 55032 Class A, 55014-1, 62368-1, 55024, 60335-1
Type	Enclosed
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	9 V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Mounting Type	Features	Approval Agency	Efficiency	Voltage - Output 1	Power (Watts)	Standard Number	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Type	Current - Output 1	Number of Outputs	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Load Regulation	Line Regulation	Current - Output (Max) [Max]
CUI Inc. PSK-S10C-9-T	1.09 "	2.99 in	27.8 mm	76 mm	31.5 mm	1.24 in	4000 V	Chassis Mount	Universal Input	CB Scheme EN IEC UL	80 %	9 V	10 W	55014-1 55014-2 55024 55032 Class A 60335-1 60950-1 61000-3-2 62368-1	Household Appliances ITE (Commercial)	264 VAC 370 VDC	85 VAC 100 V	Enclosed	1.1 A	1
CUI Inc. PSK-S10C-5	0.75 in	2.12 "		53.8 mm		1.13 in		Through Hole	Universal Input	CB Scheme EN IEC UL	76 %	5 V	10 W	55014-1 55014-2 55024 55032 Class A 60335-1 60950-1 61000-3-2 62368-1	Household Appliances ITE (Commercial)	264 VAC 370 VDC	85 VAC 100 V	Enclosed		1	4-DIP Module	28.8 mm	19 mm	1 %	0.5 %	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 9V 85 ~ 264 VAC, 100 ~ 370 VDC Input
