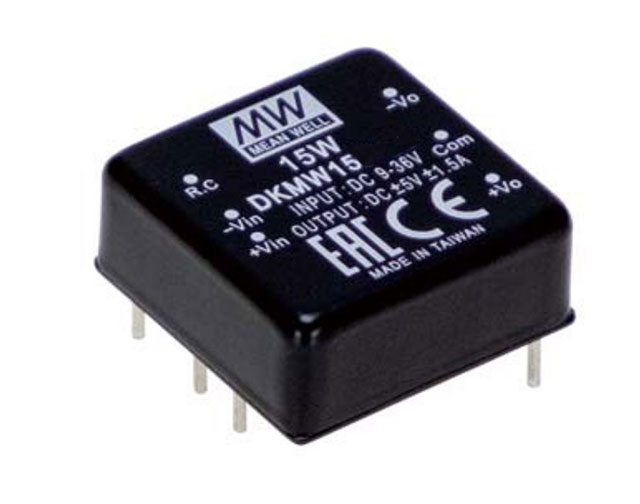

DKMW15F-05
ActiveMEAN WELL USA Inc.
DC DC CONVERTER +/-5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DKMW15F-05
ActiveMEAN WELL USA Inc.
DC DC CONVERTER +/-5V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DKMW15F-05 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, EAC |
| Current - Output (Max) | 1.5 A |
| Current - Output (Max) | 1.5 A |
| Efficiency | 85 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 28.73 | |
| 5 | $ 27.67 | |||
| 10 | $ 27.22 | |||
Description
General part information
DKMW15 Series
Isolated Module DC DC Converter 2 Output 5V -5V 1.5A, 1.5A 9V - 36V Input
