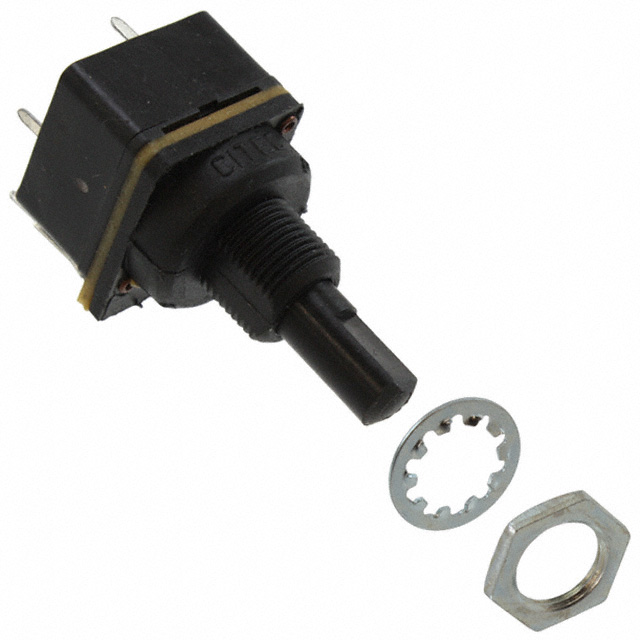

1624198-1
ObsoleteTE Connectivity Passive Product
POT 10K OHM 1/4W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1624198-1
ObsoleteTE Connectivity Passive Product
POT 10K OHM 1/4W CARBON LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1624198-1 |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length | 19 mm |
| Actuator Length [z] | 0.748 in |
| Actuator Type | Flatted |
| Adjustment Type | Side Adjustment |
| Built in Switch | Push-Push, SPDT |
| Bushing Thread | M10 x 0.75 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance (Ohms) | 10k |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [x] | 19.2 mm |
| Size - Body [x] | 0.756 in |
| Size - Body [y] | 0.699 in |
| Size - Body [y] | 17 mm |
| Taper | Linear |
| Temperature Coefficient | 5 % |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1624198 Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer Push-Push, SPDT 1.0 Kierros Carbon 0.25W, 1/4W PC Pins
