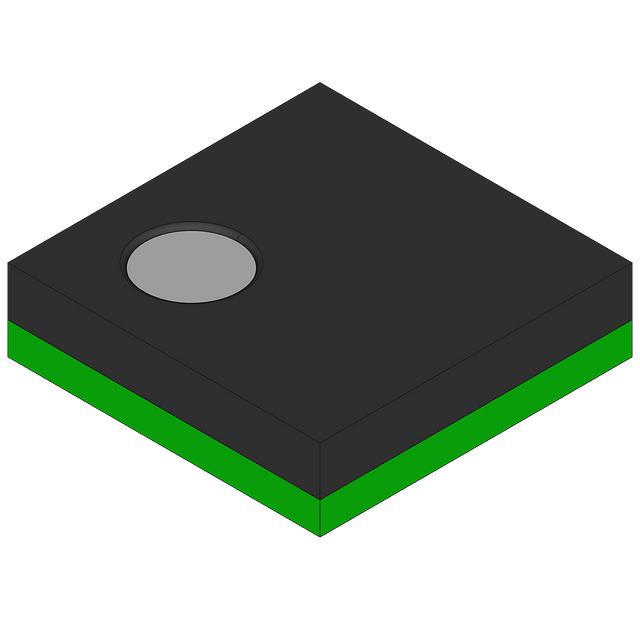

LP3954TL/NOPB
ActiveNational Semiconductor
LP3954 ADVANCED LIGHTING MANAGEM
Deep-Dive with AI
Search across all available documentation for this part.
LP3954TL/NOPB
ActiveNational Semiconductor
LP3954 ADVANCED LIGHTING MANAGEM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP3954TL/NOPB |
|---|---|
| Applications | Camera Flash, Backlight |
| Current - Output / Channel | 900 mA |
| Dimming | PWM |
| Frequency | 2 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 13 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 36-WFBGA, DSBGA |
| Supplier Device Package | 36-DSBGA |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output [Max] | 5.3 V |
| Voltage - Output [Min] | 4 V |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 87 | $ 3.46 | |
| Cut Tape (CT) | 1 | $ 6.42 | ||
| 10 | $ 5.77 | |||
| 25 | $ 5.45 | |||
| 100 | $ 4.73 | |||
| Digi-Reel® | 1 | $ 6.42 | ||
| 10 | $ 5.77 | |||
| 25 | $ 5.45 | |||
| 100 | $ 4.73 | |||
| Tape & Reel (TR) | 250 | $ 3.01 | ||
| 500 | $ 3.00 | |||
Description
General part information
LP3954 Series
LED Driver IC 13 Output DC DC Regulator Step-Up (Boost) PWM Dimming 900mA (Switch) 36-DSBGA
Documents
Technical documentation and resources
No documents available
