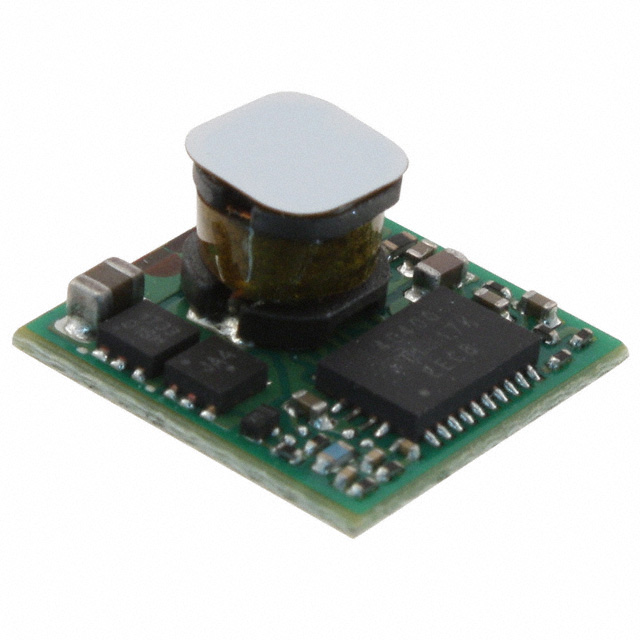

PVX006A0X43-SRZ
OmniOn Power™
DC DC CONVERTER 0.6-5.5V 33W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PVX006A0X43-SRZ
OmniOn Power™
DC DC CONVERTER 0.6-5.5V 33W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PVX006A0X43-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 94 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power (Watts) | 33 W |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [z] | 0.25 " |
| Size / Dimension [z] | 6.3 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14.4 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1600 | $ 9.12 | |
Description
General part information
PVX006 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 6A 3V - 14.4V Input
