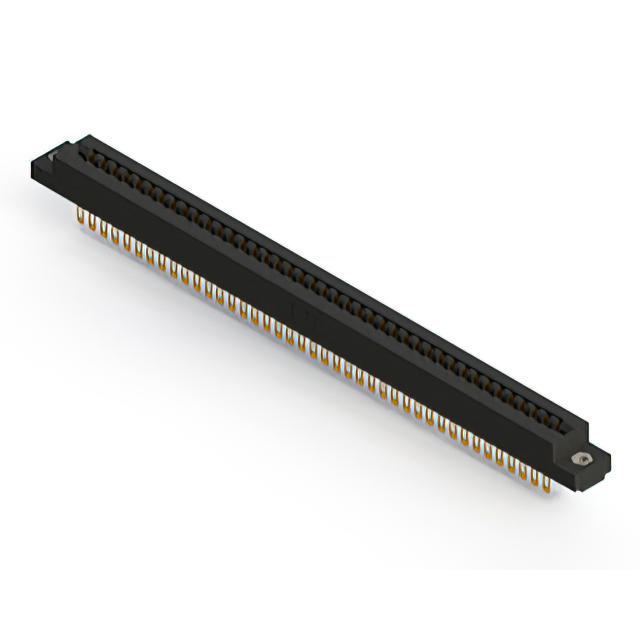

857-082-500-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-082-500-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-082-500-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
857-082 Series
...
| Part | Number of Rows | Card Type | Gender | Contact Material | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Read Out | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Number of Positions | Contact Type | Color | Termination Rows | Pitch [x] | Pitch [x] | Features | Flange Feature | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Board Edge Straddle Mount | Solder | Dual | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | Card Extender | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Through Hole | Solder | Dual | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Through Hole Right Angle | Solder | Single | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Through Hole | Solder | Dual | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Board Edge Straddle Mount | Solder | 10 Áin | 0.25 Ám | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | Card Extender | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Through Hole | Solder | Dual | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Through Hole | Solder | Dual | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | |||||||
EDAC Inc. | 2 | Non Specified - Dual Edge | Female | Copper Alloy | Through Hole Right Angle | Solder | Single | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Polyphenylene Sulfide (PPS) | 82 | Semi Bellows | Black | 2 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-082 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
Documents
Technical documentation and resources
