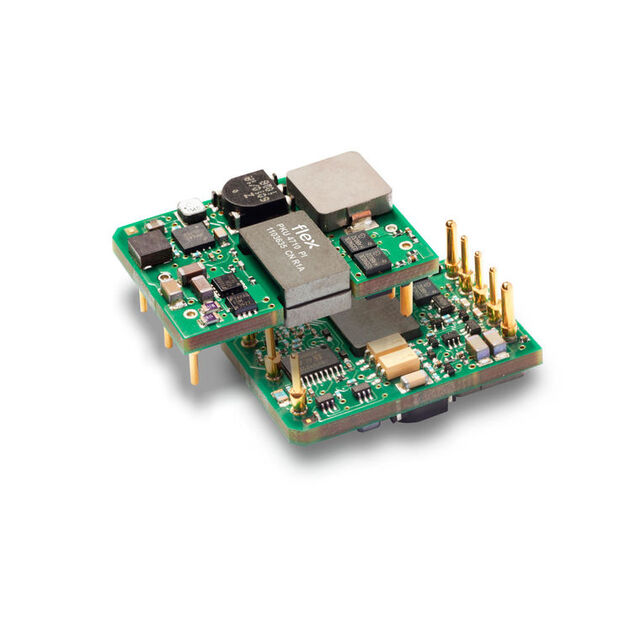

PKU4510PI

Active

Flex Power Modules

DC DC CONVERTER 3.3V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKU4510PI

Active

Flex Power Modules

DC DC CONVERTER 3.3V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PKU4510PI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	15 A
Efficiency	89.9 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-45 °C
Package / Case	Sixteenth Brick
Power (Watts)	50 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	0.39 in
Size / Dimension [z]	9.9 mm
Standard Number	62368-1
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

PKU451 Series

Part	Approval Agency	Package / Case	Control Features	Power (Watts)	Voltage - Isolation	Standard Number	Supplier Device Package	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Type	Efficiency	Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 1
Flex Power Modules PKU4510SI	CB CSA IEC TUV UL	Sixteenth Brick	Active Low Enable	50 W	1.5 kV	62368-1	Sixteenth Brick	Surface Mount	1	22.9 mm	33 mm	1.3 "	0.39 in	0.9 "	9.9 mm	36 V	Isolated Module	89.9 %	75 V	Adjustable Output Remote On/Off Remote Sense	15 A	120 °C	-45 °C	ITE (Commercial)	3.3 V
Flex Power Modules PKU4510PI	CB CSA IEC TUV UL	Sixteenth Brick	Active Low Enable	50 W	1.5 kV	62368-1	Sixteenth Brick	Through Hole	1	22.9 mm	33 mm	1.3 "	0.39 in	0.9 "	9.9 mm	36 V	Isolated Module	89.9 %	75 V	Adjustable Output Remote On/Off Remote Sense	15 A	120 °C	-45 °C	ITE (Commercial)	3.3 V
Flex Power Modules PKU4511SI	CB CSA IEC TUV UL	Sixteenth Brick	Active Low Enable	50 W	1.5 kV	62368-1	Sixteenth Brick	Surface Mount	1	22.9 mm	33 mm	1.3 "	0.39 in	0.9 "	9.9 mm	36 V	Isolated Module	90 %	75 V	Adjustable Output Remote On/Off Remote Sense	10 A	120 °C	-45 °C	ITE (Commercial)	5 V
Flex Power Modules PKU4515PI	CB CSA IEC TUV UL	Sixteenth Brick	Active Low Enable	50 W	1.5 kV	62368-1	Sixteenth Brick	Through Hole	1	22.9 mm	33 mm	1.3 "	0.39 in	0.9 "	9.9 mm	36 V	Isolated Module	89.9 %	75 V	Adjustable Output Remote On/Off Remote Sense	3.3 A	120 °C	-45 °C	ITE (Commercial)	15 V
Flex Power Modules PKU4515SI	CB CSA IEC TUV UL	Sixteenth Brick	Active Low Enable	50 W	1.5 kV	62368-1	Sixteenth Brick	Surface Mount	1	22.9 mm	33 mm	1.3 "	0.39 in	0.9 "	9.9 mm	36 V	Isolated Module	89.9 %	75 V	Adjustable Output Remote On/Off Remote Sense	3.3 A	120 °C	-45 °C	ITE (Commercial)	15 V
Flex Power Modules PKU4511PI	CB CSA IEC TUV UL	Sixteenth Brick	Active Low Enable	50 W	1.5 kV	62368-1	Sixteenth Brick	Through Hole	1	22.9 mm	33 mm	1.3 "	0.39 in	0.9 "	9.9 mm	36 V	Isolated Module	90 %	75 V	Adjustable Output Remote On/Off Remote Sense	10 A	120 °C	-45 °C	ITE (Commercial)	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	150	$ 40.13

Description

General part information

PKU451 Series

Isolated Module DC DC Converter 1 Output 3.3V 15A 36V - 75V Input
