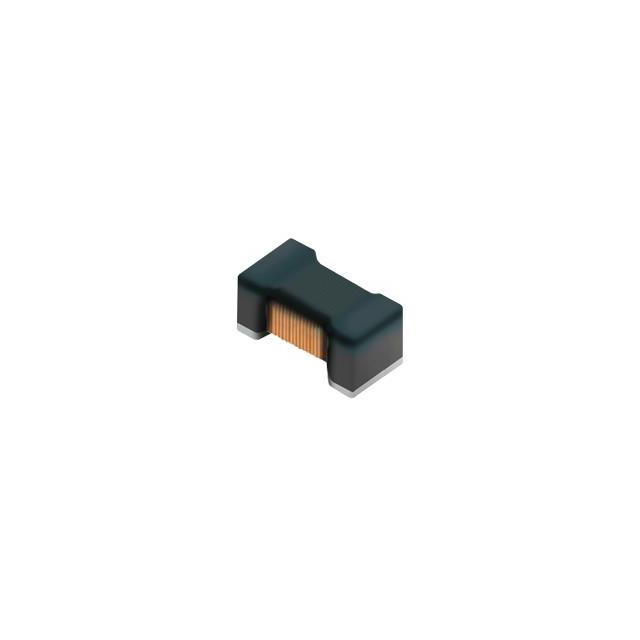

LQW15CN34NJ10D

Active

Murata Power Solutions Inc.

FIXED IND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW15CN34NJ10D

Active

Murata Power Solutions Inc.

FIXED IND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW15CN34NJ10D

null

LQW15CN Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Shielding	Mounting Type	Type	Inductance Frequency - Test	Current Rating (Amps)	Inductance	Material - Core	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	DC Resistance (DCR)
Murata Power Solutions Inc. LQW15CNR82M10D	0.6 mm	0.024 in	0402 (1005 Metric)	Unshielded	Surface Mount	Drum Core Wirewound	1 MHz	275 mA	820 nH	Ferrite	840 mOhm	200 MHz	0.6 mm	1 mm	0.024 "	0.039 in	20 %	-55 °C	125 °C
Murata Power Solutions Inc. LQW15CN53NK10D
Murata Power Solutions Inc. LQW15CN34NJ1ZD	0.6 mm	0.024 in	0402 (1005 Metric)	Unshielded	Surface Mount	Drum Core Wirewound	100 MHz	1.8 A	34 nH	Ferrite	36 mOhm	2.5 GHz	0.6 mm	1 mm	0.024 "	0.039 in	5 %	-40 °C	125 °C	AEC-Q200
Murata Power Solutions Inc. LQW15CN34NJ10D
Murata Power Solutions Inc. LQW15CNR11J1ZD	0.6 mm	0.024 in	0402 (1005 Metric)	Unshielded	Surface Mount	Drum Core Wirewound	100 MHz	0.85 A	106 nH	Ferrite	144 mOhm	1.5 GHz	0.6 mm	1 mm	0.024 "	0.039 in	5 %	-40 °C	125 °C	AEC-Q200
Murata Power Solutions Inc. LQW15CN48NJ0ZD	0.6 mm	0.024 in	0402 (1005 Metric)	Unshielded	Surface Mount	Drum Core Wirewound	100 MHz	1.1 A	48 nH	Ferrite	78 mOhm	1.4 GHz	0.6 mm	1 mm	0.024 "	0.039 in	5 %	-40 °C	125 °C	AEC-Q200
Murata Power Solutions Inc. LQW15CN18NJ00D	0.6 mm	0.024 in	0402 (1005 Metric)	Unshielded	Surface Mount	Drum Core Wirewound	100 MHz	1.4 A	18 nH	Ferrite		3 GHz	0.6 mm	1 mm	0.024 "	0.039 in	5 %	-55 °C	125 °C		46 mOhm
Murata Power Solutions Inc. LQW15CNR68M10D	0.6 mm	0.024 in	0402 (1005 Metric)	Unshielded	Surface Mount	Drum Core Wirewound	1 MHz	0.29 A	0.68 µH	Ferrite	780 mOhm	290 MHz	0.6 mm	1 mm	0.024 "	0.039 in	20 %	-55 °C	125 °C
Murata Power Solutions Inc. LQW15CNR42K1ZD	0.6 mm	0.024 in	0402 (1005 Metric)	Unshielded	Surface Mount	Drum Core Wirewound	10 MHz	370 mA	420 nH	Ferrite	620 mOhm	400 MHz	0.6 mm	1 mm	0.024 "	0.039 in	10 %	-40 °C	125 °C	AEC-Q200
Murata Power Solutions Inc. LQW15CN70NJ0ZD	0.6 mm	0.024 in	0402 (1005 Metric)	Unshielded	Surface Mount	Drum Core Wirewound	100 MHz	820 mA	70 nH	Ferrite		1.3 GHz	0.6 mm	1 mm	0.024 "	0.039 in	5 %	-40 °C	125 °C	AEC-Q200	120 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.20

Description

General part information

LQW15CN Series

Inductor
