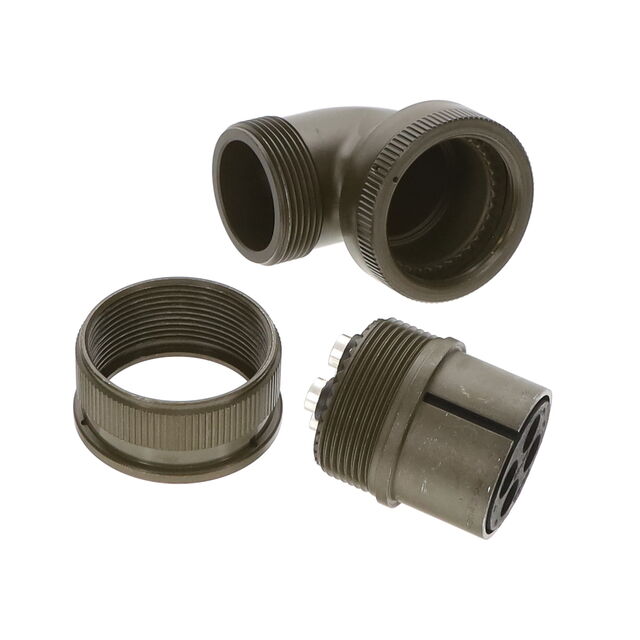

MS3108A22-22S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 4P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN PLUG FMALE 4P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108A22-22S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	22
Shell Size - Insert [Min]	22
Shielding	Unshielded

Part	Orientation	Contact Finish - Mating	Color	Applications	Shielding	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Connector Type	Number of Positions	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Mounting Type	Shell Finish	Primary Material	Insert Material	Contact Material	Shell Size - Insert
Amphenol Industrial Operations MS3108A22-22S	N	Silver	Olive Drab	Marine Military	Unshielded	Aluminum Alloy	-55 °C	125 °C	MIL-5015	Female Sockets Plug	4	Coupling Nut	22	22	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Metal	Neoprene	Copper Alloy
Amphenol Industrial Operations MS3108A22-24S
Amphenol Industrial Operations MS3108A22-14S	N	Silver	Olive Drab	Marine Military	Unshielded	Aluminum Alloy	-55 °C	125 °C	MIL-5015	Female Sockets Plug	19	Coupling Nut			Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Metal	Neoprene	Copper Alloy	22-14
Amphenol Industrial Operations MS3108A22-2PY	Y	Silver	Olive Drab	Marine Military	Unshielded	Aluminum Alloy	-55 °C	125 °C	MIL-5015	Male Pins Plug		Coupling Nut			Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Metal	Neoprene	Copper Alloy	22-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
