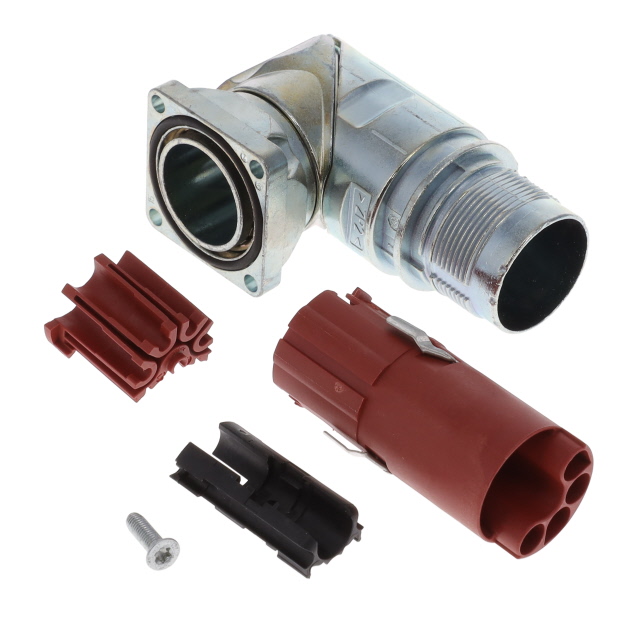

HGC422N00003300000

Active

TE Intercontec

CONN RCPT HSG MALE 7P PNL MT RA

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 7P PNL MT RA

Technical Specifications

Parameters and characteristics for this part

Specification	HGC422N00003300000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Brass and Zinc Die Cast
Shell Size - Insert	M23-7
Shielding	Shielded
Type	For Male Pins

Part	Orientation	Note	Housing Color	Number of Positions	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Connector Type	Fastening Type	Mounting Feature	Features	Ingress Protection	Shell Finish	Insert Material	Mounting Type	Material Flammability Rating	Shell Size - Insert	Shell Material	Contact Shape
TE Intercontec HGC422N00003300000	Keyed	Contacts Not Included	Silver	7	For Male Pins	-20 C	130 °C	Shielded	Receptacle Housing	Push-Twist	Flange	Backshell Rotatable	IP66/IP67	Nickel	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Panel Mount Right Angle	UL94 V-0	M23-7	Brass and Zinc Die Cast	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (2 + 4 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
