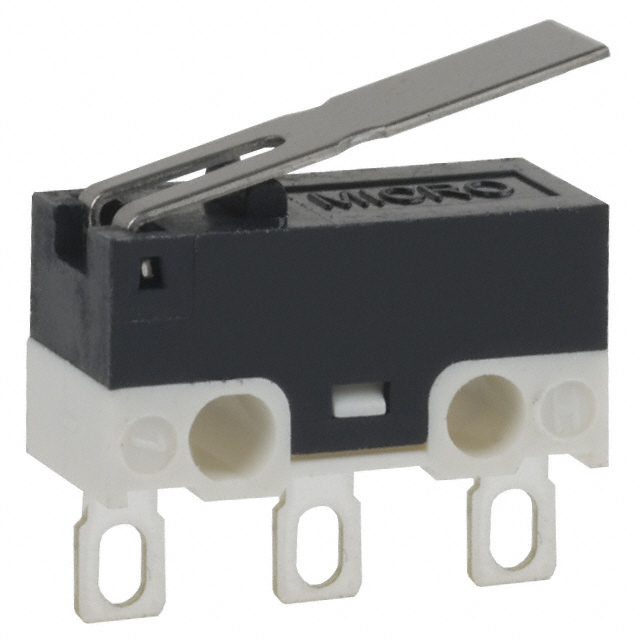

ZX40E10C01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Mechanical Life	Termination Style	Differential Travel	Differential Travel	Release Force	Current Rating (Amps)	Overtravel	Overtravel	Circuit	Voltage Rating - AC	Switch Function	Electrical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Pretravel	Pretravel	Actuator Type	Operating Position [x]	Operating Position [x]
Honeywell Sensing and Productivity Solutions ZX40E10C01	48 gf	1000000 Cycles	Solder Lug	0.05 in	1.3 mm	8 gf	3 A	0.6 mm	0.025 "	SPDT	125 V	On-Mom	10000 Cycles	Chassis Mount	-40 °C	120 °C	8.4 mm	0.33 in	0.134 in	3.4 mm	Lever Straight
Honeywell Sensing and Productivity Solutions ZX40E10J01		1000000 Cycles	Solder Lug	0.118 "	3 mm		3 A	0.9 mm	0.035 "	SPDT	125 V	On-Mom	10000 Cycles	Chassis Mount	-40 °C	120 °C			0.4 in	10.1 mm	Lever Straight	0.35 in	8.9 mm
Honeywell Sensing and Productivity Solutions ZX40E60A01	150 gf	1000000 Cycles	PC Pin	0.012 "	0.3 mm	20 gf	3 A	0.2 mm	0.008 in	SPDT	125 V	On-Mom	10000 Cycles	Through Hole Right Angle	-40 °C	120 °C			0.051 in	1.3 mm	Round (Pin Plunger)	0.276 in	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
