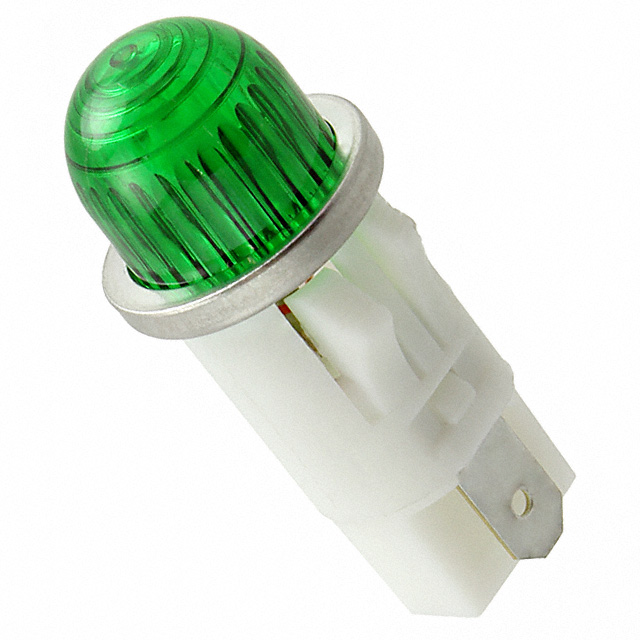

1092QA5-12V

Active

Visual Communications Company - VCC

LED PMI, GREEN, HI-DOME, 12V, 3/

Deep-Dive with AI

Search across all available documentation for this part.

1092QA5-12V

Active

Visual Communications Company - VCC

LED PMI, GREEN, HI-DOME, 12V, 3/

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1092QA5-12V

Current	25 mA
Lamp Color	Green
Lens Color	Green
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	12000 mcd
Panel Cutout Dimensions	12.7 mm
Panel Cutout Dimensions	0.5 in
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	LED
Voltage	12 V

1092Q Series

Part	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Current	Termination Style	Lens Style	Ratings	Panel Cutout Shape	Lamp Color	Millicandela Rating	Lens Color	Voltage	Lens Transparency	Lens Size	Lens Size	Wavelength - Peak
Visual Communications Company - VCC 1092QA1-125VAC	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)	Round with Domed Top	AC	Round	Red	13000 mcd	Red	125 V	Diffused
Visual Communications Company - VCC 1092QA5-12V	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)	Round with Domed Top	DC	Round	Green	12000 mcd	Green	12 V	Diffused
Visual Communications Company - VCC 1092QC2-28V	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)		AC/DC	Round	Clear	7000 mcd	Colorless	28 V	Clear	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092QC6-125VAC	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)		AC	Round	Blue	3200 mcd	Blue	125 V	Clear
Visual Communications Company - VCC 1092QA2-28V	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)	Round with Domed Top	AC/DC	Round	Clear	7000 mcd	Colorless	28 V	Clear	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092QA1-12V	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)	Round with Domed Top	DC	Round	Red	13000 mcd	Red	12 V	Diffused
Visual Communications Company - VCC 1092QM2-125VAC	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)	Round with Domed Top	AC	Round	Clear	7000 mcd	Colorless	125 V	Clear	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092QM5-28V	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)	Round with Domed Top	DC	Round	Green	12000 mcd	Green	28 V	Diffused
Visual Communications Company - VCC 1092QD5-125VAC	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)	Round with Domed Top	AC	Round	Green	12000 mcd	Green	125 V	Diffused
Visual Communications Company - VCC 1092QA6-12V	LED	12.7 mm	0.5 in	25 mA	Quick Connect - 0.187" (4.7mm)	Round with Domed Top	DC	Round	Blue	3200 mcd	Blue	12 V	Clear

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.72
		10	$ 4.75
		100	$ 3.74
		500	$ 3.34
		1000	$ 3.22
		2000	$ 3.12

Description

General part information

1092Q Series

LED Panel Indicator Green Diffused 12V 25mA Quick Connect - 0.187" (4.7mm)

Documents

Technical documentation and resources

No documents available
