19300167297

Active

HARTING Technology Group

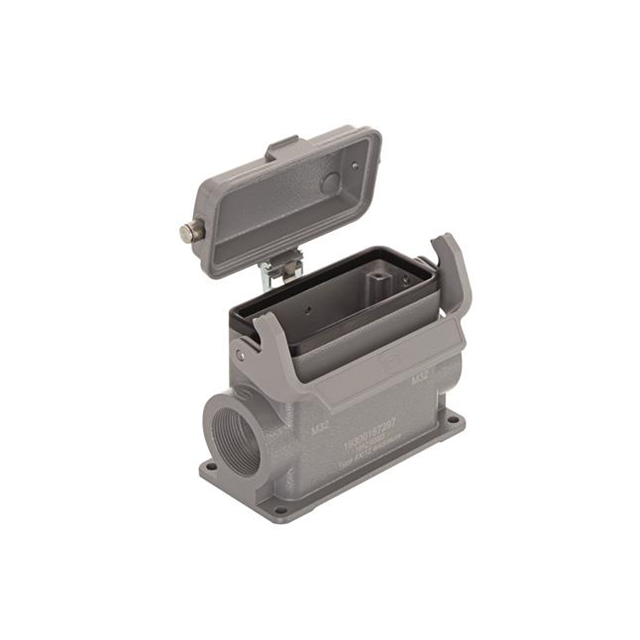

HEAVY DUTY CONNECTOR, M32, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 16B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M32, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 16B

Technical Specifications

Parameters and characteristics for this part

Specification	19300167297

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	117 mm
Size / Dimension [x]	4.606 "
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.189 "
Size / Dimension [z]	81 mm
Style	Side Entry
Thread Size	M32

Part	Size	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Lock Location	Style	Connector Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Ingress Protection	Thread Size	Housing Color
HARTING Technology Group 19300167297	16 B	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Locking Clip (1) on Base Bottom	Side Entry	Base - Box Mount	3.189 "	2.244 "	117 mm	81 mm	4.606 "	57 mm	IP65 - Dust Tight Water Resistant	M32	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M32 16B IP65 - Dust Tight, Water Resistant
