E2003S.18.10

Active

Prysmian Group

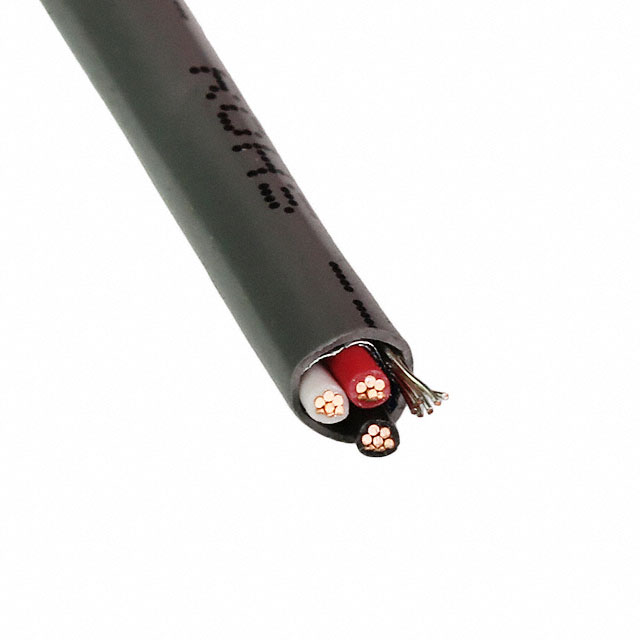

CABLE 3COND 22AWG GRAY SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 22AWG GRAY SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	E2003S.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.135 in
Jacket (Insulation) Diameter [diameter]	3.43 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	22 AWG

Part	Wire Gauge	Features	Length [x]	Length [x]	Voltage	Cable Type	Shield Coverage	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Jacket Color	Usage	Jacket (Insulation) Material	Conductor Material
Prysmian Group E2003S.18.10	22 AWG	Drain Wire	500 '	152.4 m	300 V	Multi-Conductor	100 %	Poly-Vinyl Chloride (PVC)	7	30 AWG	0.015 in	0.381 mm	3	Flexfoil®	0.135 in	3.43 mm	Foil	Gray	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable Gray 22 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
