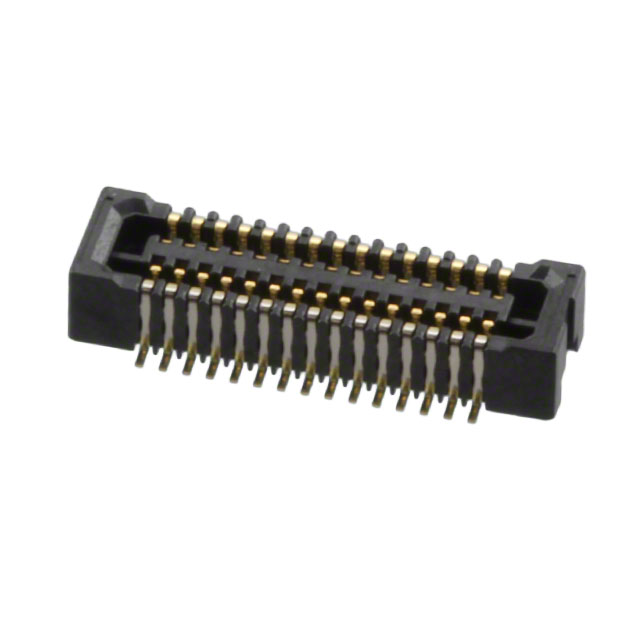

DF37NC(1.5)-30DS-0.4V(53)

Active

Hirose Electric USA, Inc.

CONN RCPT 30POS 0.4MM SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 30POS 0.4MM SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF37NC(1.5)-30DS-0.4V(53)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Height Above Board	0.059 in
Height Above Board	1.5 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Number of Rows	Number of Positions	Connector Type	Contact Finish	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mated Stacking Heights [z]	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. DF37NC(1.5)-30DS-0.4V(53)	Surface Mount	2	30	Center Strip Contacts Receptacle	Gold	1.5 mm	0.016 in	0.4 mm	0.059 in	1.5 mm
Hirose Electric USA, Inc. DF37NC-10DS-0.4V(60)
Hirose Electric USA, Inc. DF37NC-44DS-0.4V(51)	Surface Mount	2	44	Center Strip Contacts Receptacle	Gold		0.016 in	0.4 mm	0.97 mm		0.98 mm	0.038 in
Hirose Electric USA, Inc. DF37NC-44DS-0.4V(75)
Hirose Electric USA, Inc. DF37NC-60DS-0.4V(53)	Surface Mount	2	60	Center Strip Contacts Receptacle	Gold		0.016 in	0.4 mm	0.97 mm		0.98 mm	0.038 in
Hirose Electric USA, Inc. DF37NC-10DS-0.4V(53)	Surface Mount	2	10	Center Strip Contacts Receptacle	Gold		0.016 in	0.4 mm	0.97 mm		0.98 mm	0.038 in
Hirose Electric USA, Inc. DF37NC-50DS-0.4V(75)	Surface Mount	2	50	Center Strip Contacts Receptacle	Gold		0.016 in	0.4 mm			0.98 mm		1.97 Áin	0.05 Ám	1 mm	0.039 in
Hirose Electric USA, Inc. DF37NC(1.5)-60DS-0.4V(60)	Surface Mount	2	60	Center Strip Contacts Receptacle	Gold	1.5 mm	0.016 in	0.4 mm	0.059 in	1.5 mm
Hirose Electric USA, Inc. DF37NC-34DS-0.4V(53)	Surface Mount	2	34	Center Strip Contacts Receptacle	Gold		0.016 in	0.4 mm	0.97 mm		0.98 mm	0.038 in
Hirose Electric USA, Inc. DF37NC-34DS-0.4V(75)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
