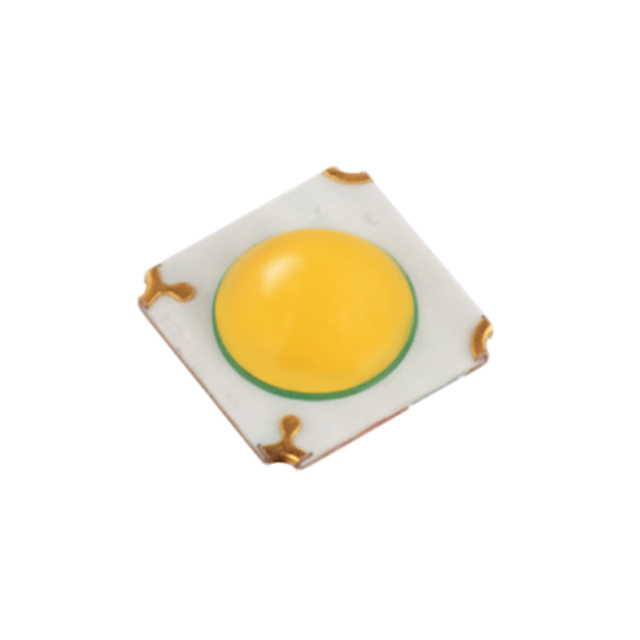

GTEW1151ASE-20Y-12-TR
ActiveStanley Electric Co
LED WARM WHT 2000K SMD
Deep-Dive with AI
Search across all available documentation for this part.
GTEW1151ASE-20Y-12-TR
ActiveStanley Electric Co
LED WARM WHT 2000K SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GTEW1151ASE-20Y-12-TR |
|---|---|
| CCT (K) | 2000 K |
| Color | White, Warm |
| Current - Max [Max] | 170 mA |
| Current - Test | 80 mA |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lumens/Watt @ Current - Test | 65 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1010 (2525 Metric) |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Thermal Resistance of Package | 40 °C/W |
| Viewing Angle | 145 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.02 | |
| 10 | $ 0.64 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 1.02 | ||
| 10 | $ 0.64 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 3000 | $ 0.32 | ||
Description
General part information
GTEW1151 Series
LED Lighting - White, Warm 2000K 3.1V 80mA 145° 1010 (2525 Metric)
Documents
Technical documentation and resources
No documents available
