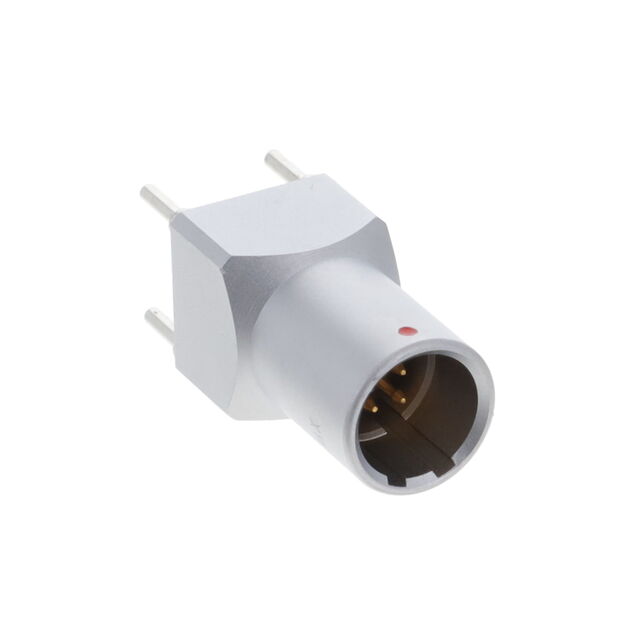

JBXEZ0J04MPSDSR

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	JBXEZ0J04MPSDSR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Board Guide
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	J
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Termination	Solder
Voltage Rating	660 V

Part	Number of Positions	Applications	Fastening Type	Shell Size - Insert	Primary Material	Contact Finish - Mating	Mounting Type	Shell Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Insert Material	Connector Type	Current Rating (Amps)	Termination	Ingress Protection	Shell Finish	Orientation	Voltage Rating	Shielding	Material Flammability Rating
Souriau-Sunbank by Eaton JBXEZ0J04MPSDSR	4	Industrial Instrumentation Medical Telecommunications	Push-Pull	0	Metal	Gold	Through Hole	Brass	Silver	125 °C	-40 °C	0.5 µm	19.7 µin	Board Guide	Polyetheretherketone (PEEK)	Male Pins Receptacle	7 A	Solder	IP40	Chrome over Nickel	J	660 V	Shielded	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
