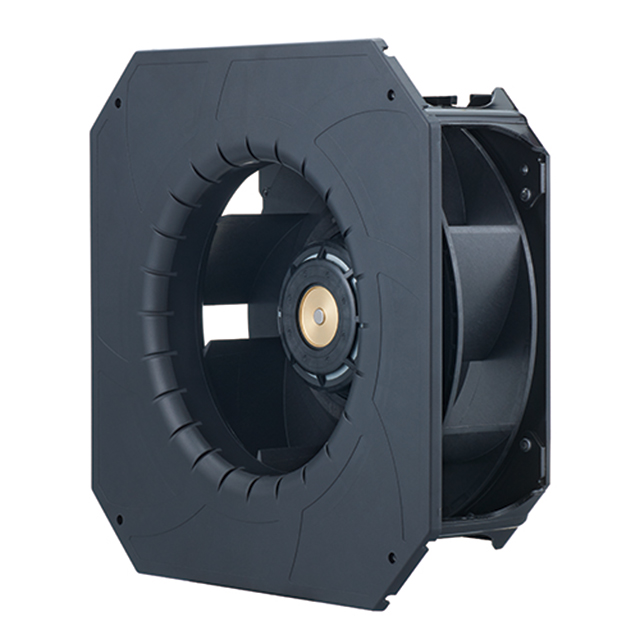

9B1TP48P0H001
ActiveSanyo Denki America Inc.
FAN BLOWER CF 270X99MM 48VDC
Deep-Dive with AI
Search across all available documentation for this part.
9B1TP48P0H001
ActiveSanyo Denki America Inc.
FAN BLOWER CF 270X99MM 48VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9B1TP48P0H001 |
|---|---|
| Air Flow | 17.42 mł/min |
| Air Flow | 622 CFM |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.6 A |
| Fan Type | Blower, Centrifugal |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 71 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 76.8 W |
| Size / Dimension [x] | 270 mm |
| Size / Dimension [z] | 270 mm |
| Static Pressure | 2.13 in H2O |
| Static Pressure | 530.6 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 72 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight | 1.7 kg |
| Weight | 3.8 lbs |
| Width [y] | 99 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 394.10 | |
| 10 | $ 362.99 | |||
| 26 | $ 339.65 | |||
Description
General part information
9B1TP48 Series
Fan Blower, Centrifugal 48VDC Square - 270mm L x 270mm H Ball 622.0 CFM (17.42m³/min) 4 Wire Leads
