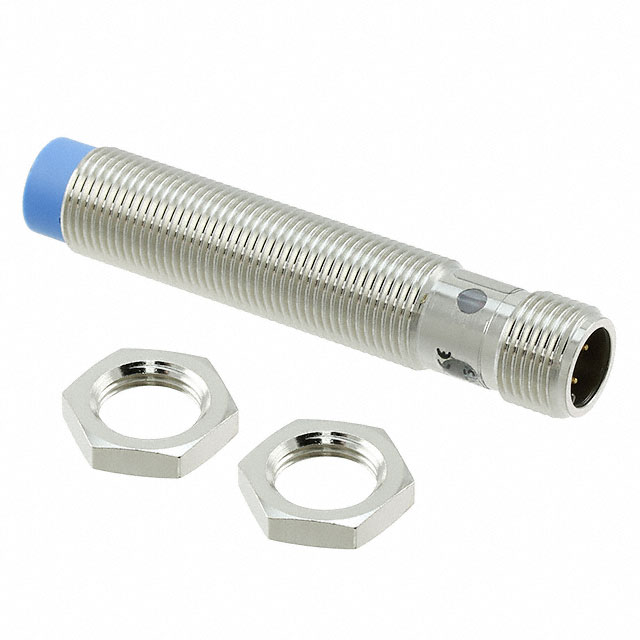

1040780

Active

SICK, Inc.

SENSOR PROX INDUCTIVE 8MM CYLIND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1040780

Active

SICK, Inc.

SENSOR PROX INDUCTIVE 8MM CYLIND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1040780

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M12
Response Frequency	2 kHz
Sensing Distance	0.315 in
Sensing Distance	8 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IME12 Series

Part	Sensor Type	Output Type	Sensing Distance	Sensing Distance	Shielding	Indicator [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Termination Style	Response Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Material - Body
SICK, Inc. 1040734	Inductive	PNP-NO 3-Wire	0.079 in	2 mm	Shielded	LED	-25 °C	75 °C	Cylinder Threaded - M12	Cable Leads	2 kHz	30 VDC	10 VDC	IP67	Plastic
SICK, Inc. IME12-04BNOZW2S	Inductive	NPN-NC 3-Wire	0.157 in	4 mm	Shielded	LED	-25 °C	75 °C	Cylinder Threaded - M12	Cable Leads	2 kHz	30 VDC	10 VDC	IP67	Plastic
SICK, Inc. 1040760	Inductive	NPN-NC 3-Wire	0.157 in	4 mm	Shielded	LED	-25 °C	75 °C	Cylinder Threaded - M12	Connector	2 kHz	30 VDC	10 VDC	IP67	Plastic
SICK, Inc. 1040787	Inductive	NPN-NO 3-Wire	0.315 in	8 mm	Shielded	LED	-25 °C	75 °C	Cylinder Threaded - M12	Connector	2 kHz	30 VDC	10 VDC	IP67	Plastic
SICK, Inc. 1040764	Inductive	PNP-NO 3-Wire	0.157 in	4 mm	Unshielded	LED	-25 °C	75 ░C	Cylinder Threaded - M12	Connector	2 kHz	30 VDC	10 VDC	IP67	Nickel-Plated Brass
SICK, Inc. 1068256	Inductive	NC 2-Wire	0.315 in	8 mm	Shielded	LED	-25 °C	75 °C	Cylinder Threaded - M12	Cable Leads	2 kHz	30 VDC	10 VDC	IP67	Plastic
SICK, Inc. IME12-02BNOZC0K	Inductive	NPN-NC 3-Wire	0.079 in	2 mm	Shielded	LED	-25 °C	75 °C	Cylinder Threaded - M12	Connector	2 kHz	30 VDC	10 VDC	IP67	Plastic
SICK, Inc. 1058759	Inductive	PNP-NO 3-Wire	0.157 in	4 mm	Shielded	LED	-25 °C	75 °C	Cylinder Threaded - M12	Connector	2 kHz	30 VDC	10 VDC	IP67	Plastic
SICK, Inc. IME12-02BPOZC0K	Inductive	PNP-NC 3-Wire	0.079 in	2 mm	Shielded	LED	-25 °C	75 °C	Cylinder Threaded - M12	Connector	2 kHz	30 VDC	10 VDC	IP67	Plastic
SICK, Inc. 1040780	Inductive	PNP-NO 3-Wire	0.315 in	8 mm	Unshielded	LED	-25 °C	75 ░C	Cylinder Threaded - M12	Connector	2 kHz	30 VDC	10 VDC	IP67	Nickel-Plated Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.13
		10	$ 47.27
		25	$ 44.31
		100	$ 42.84

Description

General part information

IME12 Series

SENSOR PROX INDUCTIVE 8MM CYLIND

Documents

Technical documentation and resources
