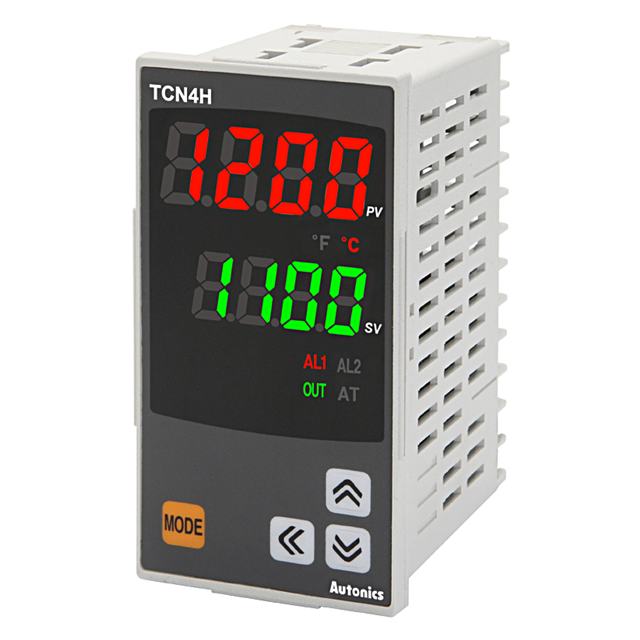

TCN4H-24R

Active

AUTONICS

TEMP CONTROL RELAY SSR 100-240V

Search across all available documentation for this part.

Active

AUTONICS

TEMP CONTROL RELAY SSR 100-240V

Technical Specifications

Parameters and characteristics for this part

Specification	TCN4H-24R

Control Method	On/Off, Proportional (PID)
Display Characters - Height	0.47 in, 0.575 "
Display Characters - Height	14.6 mm, 12 mm
Display Type	LED - Green, Red Characters
Input Range [Max]	2192 °F
Input Range [Min]	-148 °F
Number of Characters Per Row	4
Number of Characters Per Row	4
Output Type	Relay, Solid State
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	Temperature Controller (RTD, Type J, K, L, R, S, T)
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Number of Characters Per Row	Number of Characters Per Row	Input Range [Max]	Input Range [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Characters - Height	Display Characters - Height	Control Method	Display Type	Output Type	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style
AUTONICS TCN4H-24R	4	4	2192 °F	-148 °F	92 mm	45 mm	0.47 in 0.575 "	12 mm 14.6 mm	On/Off Proportional (PID)	LED - Green Red Characters	Relay Solid State	Temperature Controller (RTD Type J K L R S T)	100 VAC	240 VAC	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 128.00

General part information

Temperature Controller (RTD, Type J, K, L, R, S, T) 100 ~ 240VAC Panel Mount
