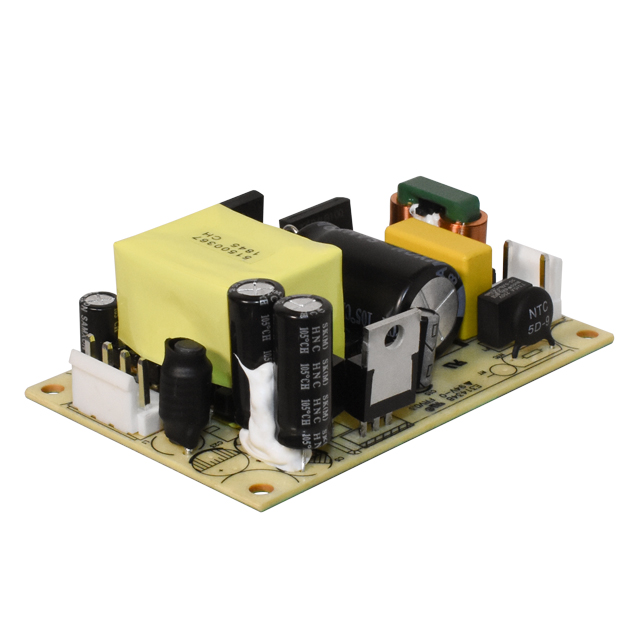

VOF-40C-S48

CUI Inc.

AC/DC CONVERTER 48V 40W

Search across all available documentation for this part.

CUI Inc.

AC/DC CONVERTER 48V 40W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Efficiency	Voltage - Output 1	Standard Number	Voltage - Isolation	Applications	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
CUI Inc. VOF-40C-S48	Universal Input	1	264 VAC 370 VDC	85 VAC 100 V	CB Scheme EN IEC UL	87 %	48 V	55024 55032 Class A 62368-1	3000 V	ITE (Commercial)	40 W	-25 °C	70 °C	Chassis Mount	Open Frame	833 mA	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm
CUI Inc. VOF-40C-S15	Universal Input	1	264 VAC 370 VDC	85 VAC 100 V	CB Scheme EN IEC UL	86 %	15 V	55024 55032 Class A 62368-1	3000 V	ITE (Commercial)	40 W	-25 °C	70 °C	Chassis Mount	Open Frame		2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm
CUI Inc. VOF-40C-S9	Universal Input	1	264 VAC 370 VDC	85 VAC 100 V	CB Scheme EN IEC UL	84 %	9 V	55024 55032 Class A 62368-1	3000 V	ITE (Commercial)	40 W	-25 °C	70 °C	Chassis Mount	Open Frame	4.444 A	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm
CUI Inc. VOF-40C-S24	Universal Input	1	264 VAC 370 VDC	85 VAC 100 V	CB Scheme EN IEC UL	86 %	24 V	55024 55032 Class A 62368-1	3000 V	ITE (Commercial)	40 W	-25 °C	70 °C	Chassis Mount	Open Frame		2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.20

General part information

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC, 100 ~ 370 VDC Input
