5207-1501-000

Active

Radiall USA, Inc.

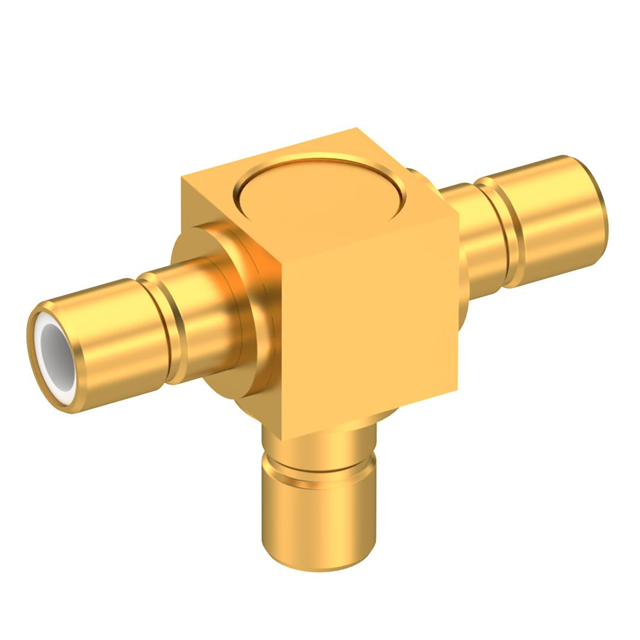

COAX ADAPT SMB TO SMB, DUAL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

COAX ADAPT SMB TO SMB, DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	5207-1501-000

Adapter Series	SMB to SMB, Dual
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMB Jack, Male Pin
Convert To (Adapter End)	Male Pin (2), SMB Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

Part	Operating Temperature [Min]	Operating Temperature [Max]	Style	Body Finish	Impedance	Adapter Type	Center Gender	Body Material	Convert To (Adapter End)	Convert From (Adapter End)	Mating Cycles	Fastening Type	Frequency - Max [Max]	Center Contact Material	Mounting Type	Center Contact Plating	Conversion Type	Dielectric Material	Adapter Series
Radiall USA, Inc. 5207-1501-000	-65 ░C	165 °C	T-Shape	Gold	50 Ohms	Jack to Jack	Male to Male	Brass	Male Pin (2) SMB Jack	SMB Jack Male Pin	500	Snap-On	4 GHz	Brass	Free Hanging (In-Line)	Gold	Same Series	Polytetrafluoroethylene (PTFE)	SMB to SMB Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 49.17

General part information

Adapter Coaxial Connector SMB Jack, Male Pin To SMB Jack, Male Pin (2) 50 Ohms

Technical documentation and resources

No documents available
