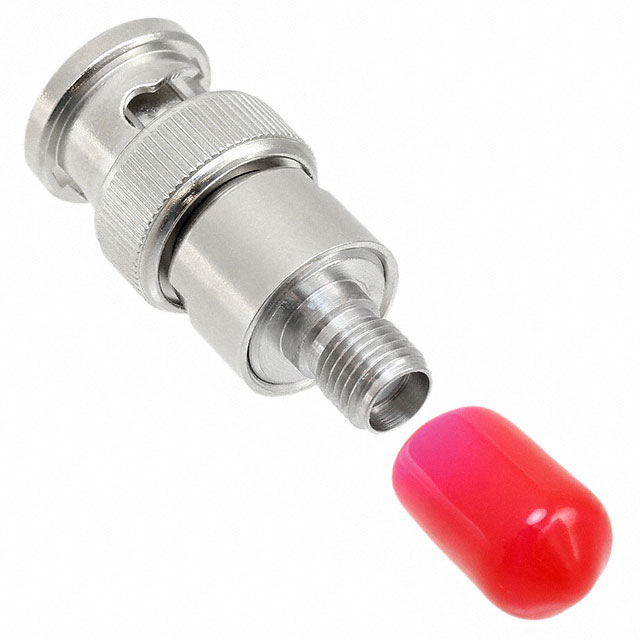

CONN ADAPT BNC PLUG TO SMA JACK

Deep-Dive with AI

Search across all available documentation for this part.

1046274-1

Active

TE Connectivity Aerospace, Defense and Marine

CONN ADAPT BNC PLUG TO SMA JACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1046274-1

Adapter Series	BNC to SMA
Adapter Type	Plug to Jack
Body Finish	Nickel; Passivated
Body Material	Brass, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

1046 Series

Part	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Housing Color	Frequency - Max [Max]	Number of Ports	Contact Termination	Body Finish	Mating Cycles	Body Material	Center Contact Plating	Impedance	Center Contact Material	Cable Group	Includes	Voltage Rating	Dielectric Material	Shield Termination	Convert To (Adapter End)	Adapter Series	Style	Conversion Type	Mounting Type	Convert From (Adapter End)	Adapter Type	Fastening Type	Convert From (Adapter End)	Center Gender	Convert To (Adapter End)	Adapter Series [Max]	Adapter Series [Min]	Insertion Loss
TE Connectivity Aerospace, Defense and Marine 1046276-1	Bulkhead - Front Side Nut	-65 ░C	105 ░C	Female Socket Jack	SMA	Gold	18 GHz	1	Solder	Gold	500	Stainless Steel	Gold	50 Ohms	Beryllium Copper	RG-405 (.085" Semi Rigid)	1 Connector 1 Contact 1 Lockwasher 1 Nut	335 V	Polytetrafluoroethylene (PTFE)	Solder
TE Connectivity Aerospace, Defense and Marine 1046274-1							4 GHz			Nickel; Passivated		Brass Stainless Steel	Gold	50 Ohms	Beryllium Copper				Polytetrafluoroethylene (PTFE)		Female Socket SMA Jack	BNC to SMA	Straight	Between Series	Free Hanging (In-Line)	BNC Plug Male Pin	Plug to Jack	Bayonet Lock Threaded
TE Connectivity Aerospace, Defense and Marine 1046295-1												Stainless Steel	Gold	50 Ohms	Beryllium Copper				Polytetrafluoroethylene (PTFE)		OS-2.9 Jack Female Socket		Straight	Between Series	Free Hanging (In-Line)		Jack to Jack		2.4 mm	Female to Female	2.92 mm	OS-2.9	OS-50
TE Connectivity Aerospace, Defense and Marine 1046248-1	Bulkhead						18 GHz			Gold		Stainless Steel	Gold	50 Ohms	Beryllium Copper				Polytetrafluoroethylene (PTFE)		Female Socket SMA Jack	OSM to OSM	Straight	Same Series		Female Socket SMA Jack	Jack to Jack			Female to Female
TE Connectivity Aerospace, Defense and Marine 1046251-1		-65 ░C	105 ░C	Male Pin Plug	SMA	Silver		1	Solder		500	Stainless Steel	Gold	50 Ohms	Beryllium Copper	RD-316		250 VDC	Polytetrafluoroethylene (PTFE)	Crimp					Free Hanging (In-Line) Right Angle
TE Connectivity Aerospace, Defense and Marine 1046243-1		-65 ░C	125 °C				4 GHz			Nickel; Passivated		Brass Stainless Steel	Gold	50 Ohms	Beryllium Copper				Polytetrafluoroethylene (PTFE)		Male Pin SMA Plug	BNC to SMA	Straight	Between Series	Free Hanging (In-Line)	BNC Jack Female Socket	Plug to Jack	Bayonet Lock Threaded
TE Connectivity Aerospace, Defense and Marine 1046286-1		-65 ░C	105 ░C	Female Socket Jack	SMA	Gold	18 GHz	1	Solder	Gold	500	Stainless Steel	Gold	50 Ohms	Beryllium Copper	RG-405 (.085" Semi Rigid)		335 V	Polytetrafluoroethylene (PTFE)	Solder					Free Hanging (In-Line)									0.3 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1046 Series

Adapter Coaxial Connector BNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
