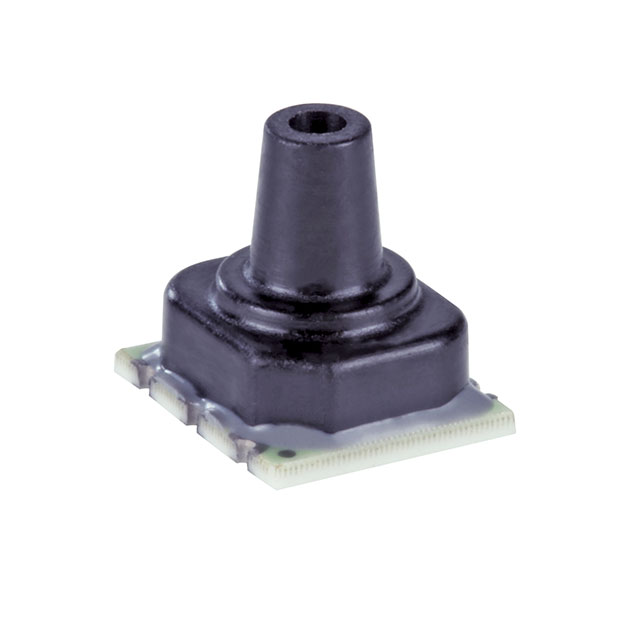

ABPLLNT010BGAA5

Active

Honeywell Sensing and Productivity Solutions

SENSOR 145.04PSIG 0.11" 4.5V SMD

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 145.04PSIG 0.11" 4.5V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ABPLLNT010BGAA5

Accuracy	0.25 %
Applications	Medical Ventilation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	1700 kPa
Maximum Pressure [Max]	246.56 PSI
Mounting Type	Surface Mount
Operating Pressure	10 bar
Operating Pressure	145.04 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Port Size	0.11 ", 2.67 mm
Port Style	Barbless
Pressure Type	Vented Gauge
Supplier Device Package	6-SMD
Termination Style	SMD (SMT) Tab

Part	Port Size	Applications	Mounting Type	Features	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Pressure Type	Output [Min]	Output [Max]	Operating Pressure	Operating Pressure	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy
Honeywell Sensing and Productivity Solutions ABPLLNT010BGAA5	0.11 " 2.67 mm	Medical Ventilation	Surface Mount	Amplified Output Temperature Compensated	6-SMD	Analog Voltage	85 °C	-40 °C	Barbless	Vented Gauge	0.5 V	4.5 V	10 bar	145.04 PSI	SMD (SMT) Tab	1700 kPa	246.56 PSI	0.25 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 145.04PSI (1000kPa) Vented Gauge Male - 0.11" (2.67mm) Tube 0.5 V ~ 4.5 V 6-SMD Module, No Lead
