T3D01870M4

Obsolete

HELLERMANNTYTON

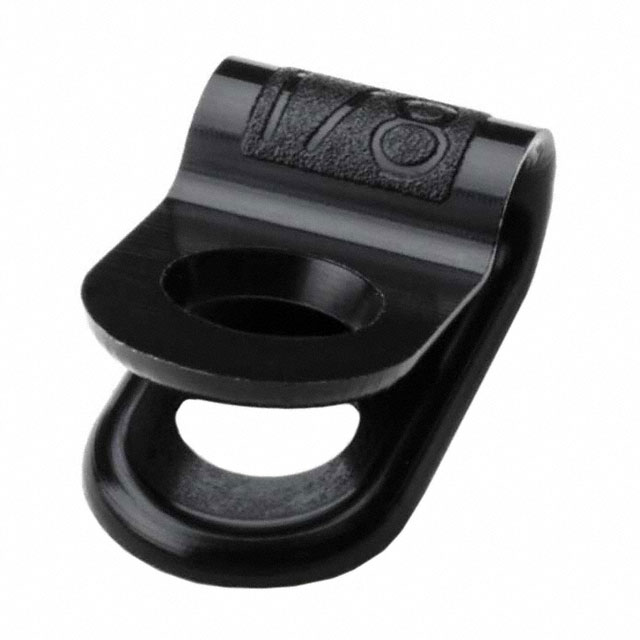

CBL CLAMP P-TYPE BLACK FASTENER

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	T3D01870M4

Bundle Center to Mounting Center	10.92 mm
Bundle Center to Mounting Center	0.43 in
Color	Black
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.05 in
Material Thickness	1.27 mm
Mounting Type	Fastener
Opening Size [z]	4.78 mm
Opening Size [z]	0.188 in
Panel Hole Size	5.16 mm
Panel Hole Size	0.203 in
Type	Clamp, P-Type
Width [x]	0.375 in
Width [x]	9.53 mm

Part	Material Flammability Rating	Width [x]	Width [x]	Color	Type	Opening Size [z]	Opening Size [z]	Material Thickness	Material Thickness	Panel Hole Size	Panel Hole Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material	Mounting Type
HELLERMANNTYTON T3D01870M4	UL94 V-2	0.375 in	9.53 mm	Black	Clamp P-Type	4.78 mm	0.188 in	0.05 in	1.27 mm	5.16 mm	0.203 in	10.92 mm	0.43 in	Polyamide (PA66) Nylon 6/6	Fastener
HELLERMANNTYTON T3D018710C2
HELLERMANNTYTON T3D01870C2
HELLERMANNTYTON T3D018710M4	UL94 V-2	0.375 in	9.53 mm	White	Clamp P-Type	4.78 mm	0.188 in	0.05 in	1.27 mm	5.16 mm	0.203 in	10.92 mm	0.43 in	Polyamide (PA66) Nylon 6/6	Fastener

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clamp, P-Type Black Fastener 0.188" (4.78mm)
