ADA-4789-BLKG
ObsoleteBroadcom Limited

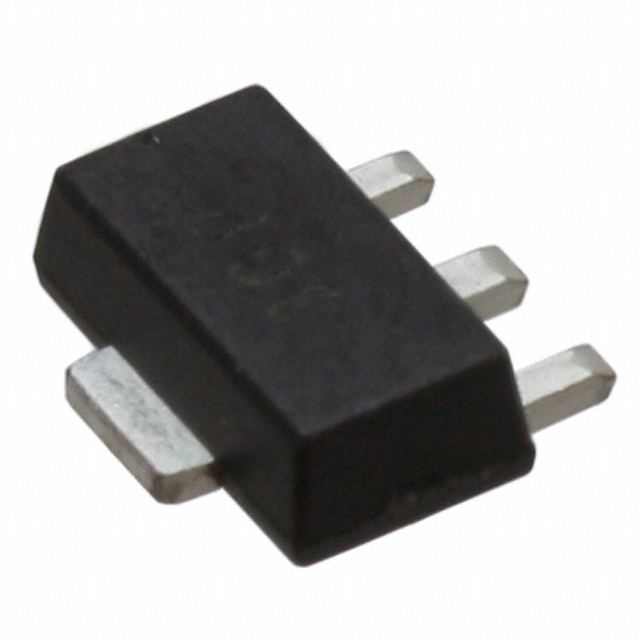

IC RF AMP WLL 0HZ-2.5GHZ SOT89
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADA-4789-BLKG
ObsoleteBroadcom Limited
IC RF AMP WLL 0HZ-2.5GHZ SOT89
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADA-4789-BLKG |
|---|---|
| Current - Supply | 90 mA |
| Frequency [Max] | 2.5 GHz |
| Frequency [Min] | 0 Hz |
| Gain | 16.2 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 4.4 dB |
| P1dB | 16.2 dBm |
| Package / Case | TO-243AA |
| RF Type | WLAN, WLL |
| Test Frequency | 2 GHz |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ADA-4789 Series
RF Amplifier IC WLL, WLAN 0Hz ~ 2.5GHz SOT-89
