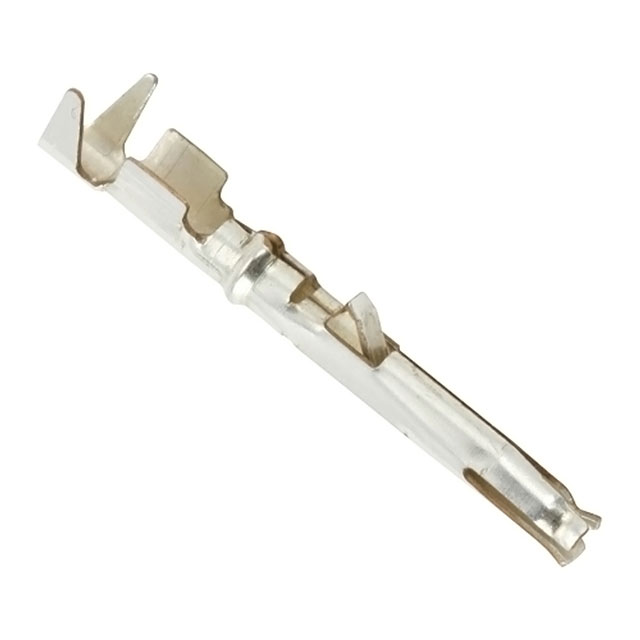

VN0201500471

Active

Amphenol Tuchel Industrial

CONTACT SOCKET 18AWG CRIMP SLVR

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONTACT SOCKET 18AWG CRIMP SLVR

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Wire Gauge or Range - AWG	Contact Type	Contact Size	Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Contact Termination	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]
Amphenol Tuchel Industrial VN0201500471	Silver	18 AWG	Socket	1.5 mm	Signal Stamped	0.75 mm²	1 mm²	Insulation Support	Crimp
Amphenol Tuchel Industrial VN0201500472	Gold	18 AWG	Socket	1.5 mm	Signal Stamped			Insulation Support	Crimp	1 mm˛	0.75 mm˛
Amphenol Tuchel Industrial VN0201500522	Gold		Socket	1.5 mm	Signal Stamped	0.09 mm²	0.25 mm²	Insulation Support	Crimp			24 AWG	28 AWG
Amphenol Tuchel Industrial VN0201500461	Silver		Socket	1.5 mm	Signal Stamped			Insulation Support	Crimp	0.5 mm˛	0.35 mm˛	20 AWG	22 AWG
Amphenol Tuchel Industrial VN0201500521	Silver		Socket	1.5 mm	Signal Stamped	0.09 mm²	0.25 mm²	Insulation Support	Crimp			24 AWG	28 AWG
Amphenol Tuchel Industrial VN0201500462	Gold		Socket	1.5 mm	Signal Stamped			Insulation Support	Crimp	0.5 mm˛	0.35 mm˛	20 AWG	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact 18 AWG Size 1.5mm Crimp Silver

Technical documentation and resources
