UTGX1JC124PSCR

Active

Souriau-Sunbank by Eaton

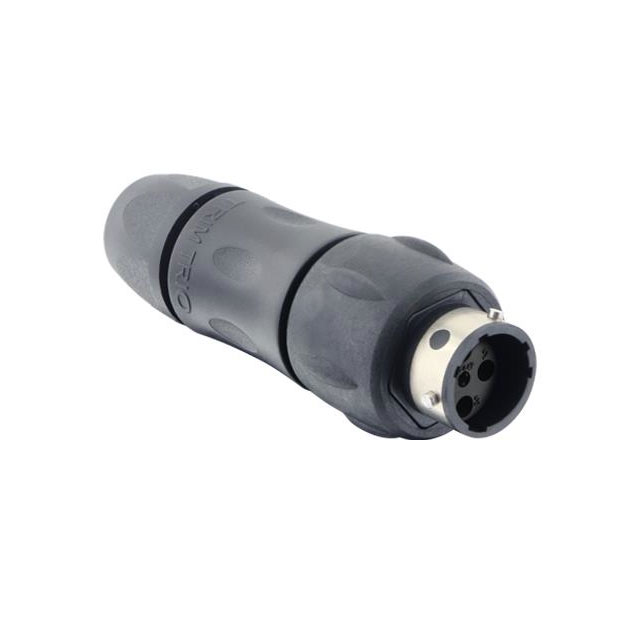

CONN RCPT MALE 4P GOLD SCREW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTGX1JC124PSCR

Applications	Testing Equipment, Industrial, Automation, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	12 mm
Cable Opening [Max] [custom]	0.472 in
Cable Opening [Min] [custom]	5 mm
Cable Opening [Min] [custom]	0.197 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	16 A
Fastening Type	Bayonet Lock
Features	UV Resistant, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	500 V

UTGX1 Series

Part	Current Rating (Amps)	Orientation	Contact Finish - Mating	Number of Positions	Voltage Rating	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Applications	Connector Type	Contact Material	Mounting Type	Primary Material	Shielding	Insert Material	Backshell Material, Plating	Ingress Protection	Color	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Size - Insert	Material Flammability Rating	Contact Size	Includes	Contact Shape	Type	Housing Color	Contact Type	Note	Contact Size	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [Max] [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Souriau-Sunbank by Eaton UTGX1JC124PSCR	16 A	N	Gold	4	500 V	Bayonet Lock	Screw	-40 °C	105 ░C	Backshell UV Resistant	Automation Industrial Instrumentation Testing Equipment	Male Pins Receptacle	Brass	Free Hanging (In-Line)	Plastic	Unshielded	Nylon Polyamide (PA)	Nylon Polyamide (PA)	IP68 IP69K	Black	5 mm	12 mm	0.197 in	0.472 in	12-4	UL94 V-0
Souriau-Sunbank by Eaton UTGX1JC103W3P		N		6		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-3W3	UL94 V-0	16 (3) 20 (3)	1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included
Souriau-Sunbank by Eaton UTGX1JC103P		N				Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-3	UL94 V-0		1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included	16	2	3	1
Souriau-Sunbank by Eaton UTGX1JC103W3S		N		6		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-3W3	UL94 V-0	16 (3) 20 (3)	1 Backshell 1 Connector 1 O-Ring	Circular	For Female Sockets	Black	Crimp	Contacts Not Included
Souriau-Sunbank by Eaton UTGX1JC128P		N		8		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						12-8	UL94 V-0		1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included	16
Souriau-Sunbank by Eaton UTGX1JC1210S		N		10		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K							UL94 V-0		1 Backshell 1 Connector 1 O-Ring	Circular	For Female Sockets	Black	Crimp	Contacts Not Included	20
Souriau-Sunbank by Eaton UTGX1JC148P		N		8		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						14-8	UL94 V-0	12 (4) 16 (4)	1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included
Souriau-Sunbank by Eaton UTGX1JC102W2P		N		4		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-2W2	UL94 V-0	12 (2) 20 (2)	1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included
Souriau-Sunbank by Eaton UTGX1JC147SSCR	10 A	N	Gold		500 V	Bayonet Lock	Screw	-40 °C	105 ░C	Backshell UV Resistant	Automation Industrial Instrumentation Testing Equipment	Receptacle Female Sockets	Brass	Free Hanging (In-Line)	Plastic	Unshielded	Nylon Polyamide (PA)	Nylon Polyamide (PA)	IP68 IP69K	Black	7 mm		0.276 in	0.551 in		UL94 V-0												1	6	14 mm	14	7
Souriau-Sunbank by Eaton UTGX1JC104P		N		4		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-4	UL94 V-0		1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 51.84

Description

General part information

UTGX1 Series

4 (3 + PE) Position Circular Connector Receptacle, Male Pins Screw

Documents

Technical documentation and resources

No documents available
