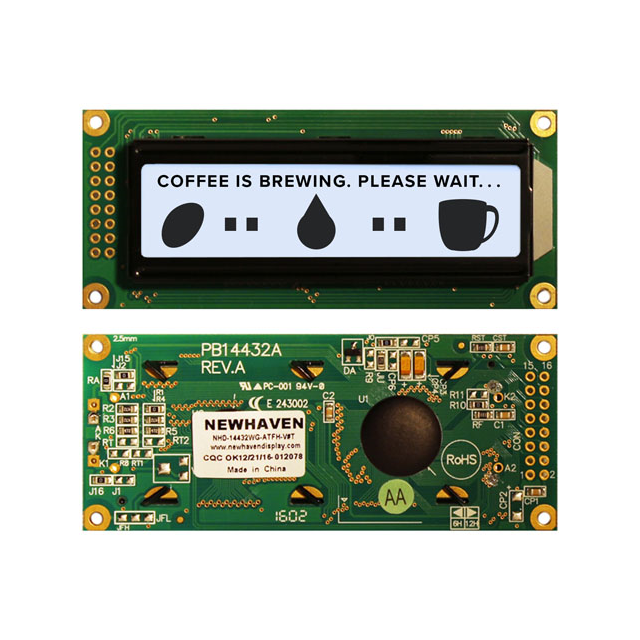

NHD-14432WG-ATFH-V#

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 144X32 WH TRANSFL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 144X32 WH TRANSFL

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-14432WG-ATFH-V#

Background Color	White
Background Color	Black
Backlight	LED - White
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.42 mm
Dot Pitch [y]	0.42 mm
Dot Pixels [x]	144
Dot Pixels [y]	32
Dot Size [x]	0.38 mm
Dot Size [y]	0.38 mm
Graphics Color	Black
Interface	Parallel, 8-Bit
Viewing Area [y]	66 mm
Viewing Area [z]	16 mm

Part	Dot Pixels [y]	Dot Pixels [x]	Display Type	Dot Pitch [y]	Dot Pitch [x]	Controller Type	Display Mode	Viewing Area [z]	Viewing Area [y]	Backlight	Dot Size [x]	Dot Size [y]	Interface	Background Color	Background Color	Graphics Color
Newhaven Display Intl NHD-14432WG-BTFH-V#T	32	144	FSTN - Film Super-Twisted Nematic	0.42 mm	0.42 mm	ST7920	Transflective	16 mm	66 mm	LED - White	0.38 mm	0.38 mm	Parallel 8-Bit	White	Black	Black
Newhaven Display Intl NHD-14432WG-ATFH-V#	32	144	FSTN - Film Super-Twisted Nematic	0.42 mm	0.42 mm		Transflective	16 mm	66 mm	LED - White	0.38 mm	0.38 mm	Parallel 8-Bit	White	Black	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transflective Black (White - Inverted) FSTN - Film Super-Twisted Nematic Parallel, 8-Bit 144 x 32
