5662-O

Active

BRADY

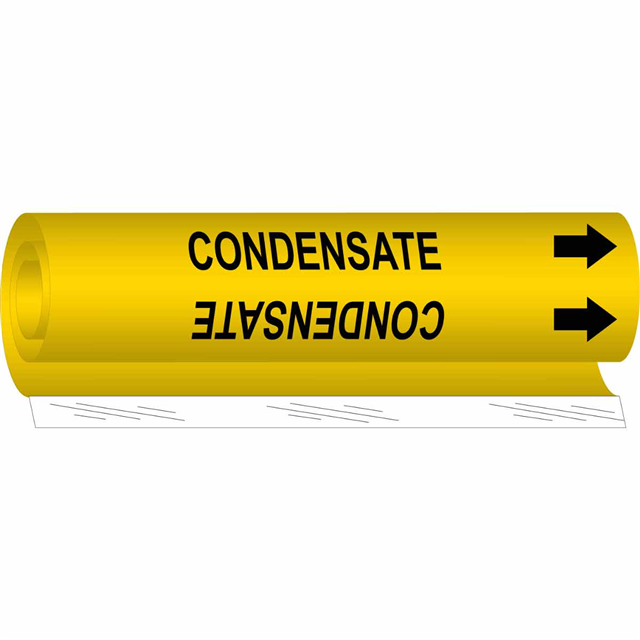

B689 5662-O BLK/YEL STYLE O

Search across all available documentation for this part.

Active

BRADY

B689 5662-O BLK/YEL STYLE O

Technical Specifications

Parameters and characteristics for this part

Specification	5662-O

Application Specifics	Directionality
Applications	General
Arrangement	Text Only
Color - Background	Yellow
Color - Legend	Black
Features	Water Resistant, Weather Resistant, Humidity Resistant, Chemical Resistant, UV Resistant, Abrasion Resistant
Language	English
Legend (Symbol Only)	Directional Arrow
Legend (Text)	Condensate
Length	8 in
Length	203.2 mm
Location	Outdoor
Material - Body	Plastic
Outside Pipe Diameter (Max) [Max] [diameter]	12.7 mm
Outside Pipe Diameter (Max) [Max] [diameter]	0.5 "
Outside Pipe Diameter (Min) [Min] [diameter]	1.375 in
Outside Pipe Diameter (Min) [Min] [diameter]	34.93 mm
Print Type	Pre-Printed
Shape	Rectangle
Width [y]	127 mm
Width [y]	5 in

Part	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Width [y]	Width [y]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Features	Shape	Language	Color - Background	Print Type	Arrangement	Length	Length	Legend (Symbol Only)	Application Specifics	Material - Body	Location	Applications	Color - Legend	Legend (Text)	Mounting Type	Width [x]	Width [x]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Color [custom]	Color [custom]	Label Size	Label Size	Material	Label Type
BRADY 5662-O	1.375 in	34.93 mm	127 mm	5 in	12.7 mm	0.5 "	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Rectangle	English	Yellow	Pre-Printed	Text Only	8 in	203.2 mm	Directional Arrow	Directionality	Plastic	Outdoor	General	Black	Condensate
BRADY 5662-I	2.375 in						Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Rectangle	English	Yellow	Pre-Printed	Symbol and Text	9 "	228.6 mm	Directional Arrow	Directionality	Plastic	Outdoor	Pipe	Black	Condensate	Snap On	8 in	203.2 mm	1.5 "	38.1 mm	60.33 mm
BRADY 5662-HPHV																												Black	Yellow	4 in 24 in	101.6 mm 609.6 mm	Polyester	Condensate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.30

General part information

B689 5662-O BLK/YEL STYLE O
