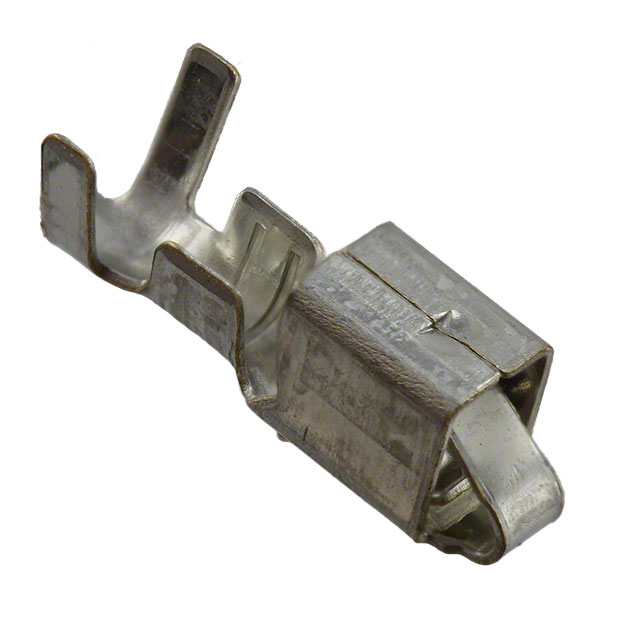

0359229002

Obsolete

Molex

CONN SOCKET 18-20AWG CRIMP TIN

Search across all available documentation for this part.

Obsolete

Molex

CONN SOCKET 18-20AWG CRIMP TIN

Technical Specifications

Parameters and characteristics for this part

Specification	0359229002

Contact Finish	Tin
Contact Finish Thickness [custom]	1.52 µm
Contact Finish Thickness [custom]	60 µin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17.5 AWG

Part	Contact Finish Thickness [custom]	Contact Finish Thickness [custom]	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish
Molex 0359229002	1.52 µm	60 µin	Socket	17.5 AWG	20 AWG	Crimp	Tin
Molex 0359228011	1.52 µm	60 µin	Socket	17.5 AWG	20 AWG	Crimp	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Socket Contact Tin 18-20 AWG Crimp

Technical documentation and resources
