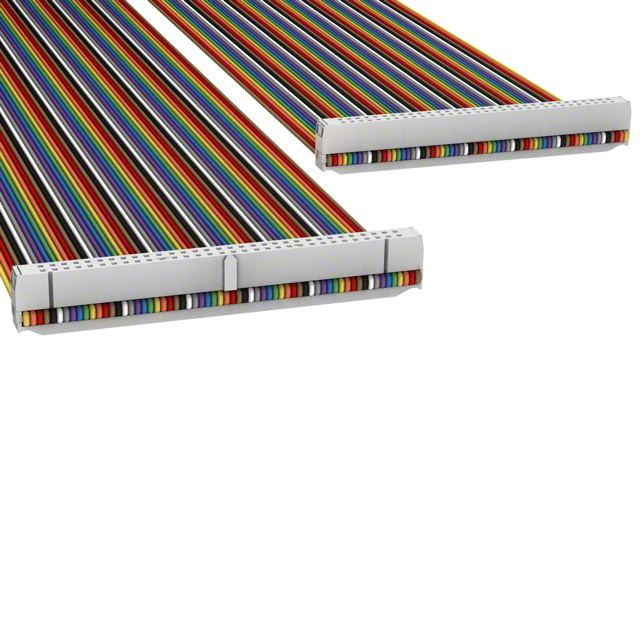

H3DDH-6406M

Active

Assmann WSW Components

IDC CBL - HHKR64H/AE64M/HHKR64H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR64H/AE64M/HHKR64H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDH-6406M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	64
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Cable Termination	Pitch - Connector	Pitch - Connector	Color	Contact Finish	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Number of Positions	Connector Type	Features	Length	Length	Length
Assmann WSW Components H3DDH-6418M	IDC	0.1 in	2.54 mm	Multiple Ribbon	Gold	457.2 mm	1.5 ft	15 µin	0.38 µm	0.05 "	1.27 mm	2	Unshielded	64	Socket to Socket	Polarizing Key Strain Relief
Assmann WSW Components H3DDH-6406G	IDC	0.1 in	2.54 mm		Gold			15 µin	0.38 µm	0.05 "	1.27 mm	2	Unshielded	64	Socket to Socket	Polarizing Key Strain Relief	152.4 mm	6 "	0.5 '
Assmann WSW Components H3DDH-6418G	IDC	0.1 in	2.54 mm		Gold	457.2 mm	1.5 ft	15 µin	0.38 µm	0.05 "	1.27 mm	2	Unshielded	64	Socket to Socket	Polarizing Key Strain Relief
Assmann WSW Components H3DDH-6436G	IDC	0.1 in	2.54 mm		Gold	914.4 mm	3 ft	15 µin	0.38 µm	0.05 "	1.27 mm	2	Unshielded	64	Socket to Socket	Polarizing Key Strain Relief
Assmann WSW Components H3DDH-6436M	IDC	0.1 in	2.54 mm	Multiple Ribbon	Gold	914.4 mm	3 ft	15 µin	0.38 µm	0.05 "	1.27 mm	2	Unshielded	64	Socket to Socket	Polarizing Key Strain Relief
Assmann WSW Components H3DDH-6406M	IDC	0.1 in	2.54 mm	Multiple Ribbon	Gold			15 µin	0.38 µm	0.05 "	1.27 mm	2	Unshielded	64	Socket to Socket	Polarizing Key Strain Relief	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
