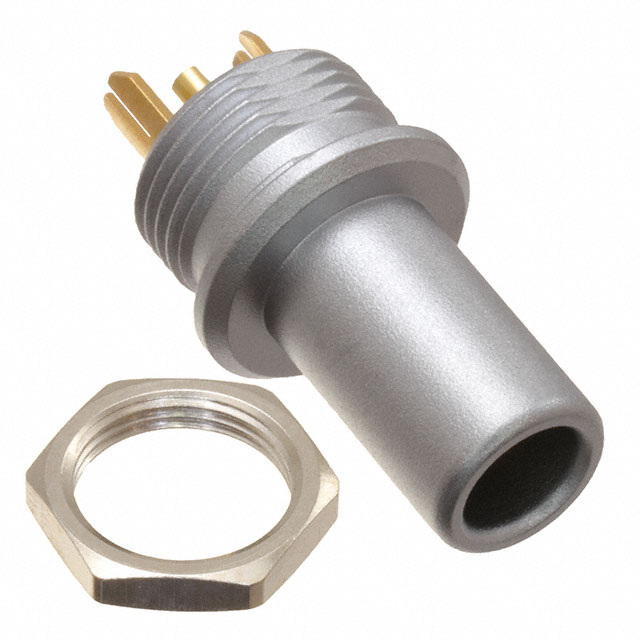

FAN.00.250.CLA
ActiveLEMO
CONN NIMCAMA PLG STR 50OHM SOLDR
Deep-Dive with AI
Search across all available documentation for this part.
FAN.00.250.CLA
ActiveLEMO
CONN NIMCAMA PLG STR 50OHM SOLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FAN.00.250.CLA |
|---|---|
| Body Finish | Chrome |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | NIM-CAMAC CD/N 549 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder Cup |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector |
| Ingress Protection | IP50 |
| Mating Cycles | 5000 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 260 ░C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 700 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.37 | |
| 10 | $ 27.47 | |||
| 25 | $ 26.28 | |||
| 50 | $ 25.44 | |||
| 100 | $ 24.59 | |||
| 250 | $ 23.23 | |||
Description
General part information
FAN.00.250 Series
NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Panel Mount Solder Cup
