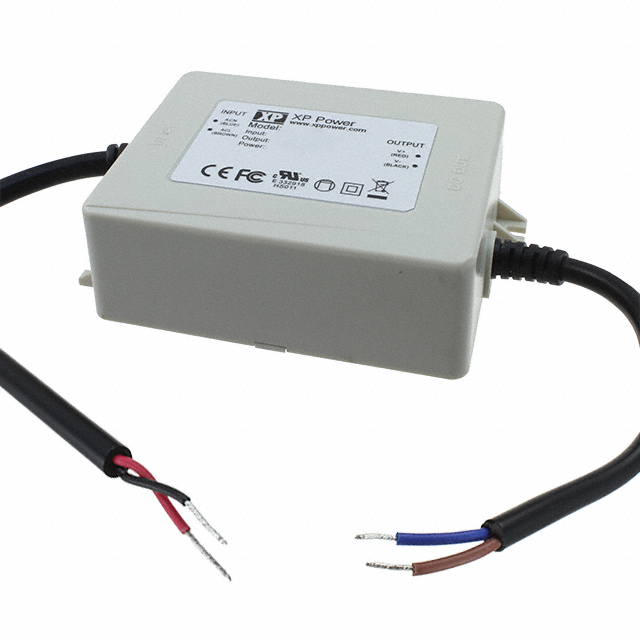

DLE25PS24

Obsolete

XP POWER

LED DVR CC/CV AC/DC 16-24V 1.05A

Search across all available documentation for this part.

Obsolete

XP POWER

LED DVR CC/CV AC/DC 16-24V 1.05A

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Topology	Features	Approval Agency	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Weight	Weight	Power (Watts)	Ratings	Voltage - Output [Min]	Voltage - Output [Max]	Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Termination Style
XP POWER DLE25PS24	90 VAC	1.29 in	73.5 mm	3.68 "	33 mm	93.5 mm	2.89 in	3750 V	AC DC Converter	OCP OVP SCP	CE TUV UL	305 VAC	1.05 A	Chassis Mount	0.77 lb	349.27 g	25 W	IP67	16 V	24 V	Constant Current Voltage	80 %	50 °C	-20 C	1	Wire Leads
XP POWER DLE25PS12	90 VAC	1.29 in	73.5 mm	3.68 "	33 mm	93.5 mm	2.89 in	3750 V	AC DC Converter	OCP OVP SCP	CE TUV UL	305 VAC	2.1 A	Chassis Mount	0.77 lb	349.27 g	25 W	IP67	9 V	12 V	Constant Current Voltage	79 %	50 °C	-20 C	1	Wire Leads
XP POWER DLE25PS48	90 VAC	1.29 in	73.5 mm	3.68 "	33 mm	93.5 mm	2.89 in	3750 V	AC DC Converter	OCP OVP SCP	CE TUV UL	305 VAC	500 mA	Chassis Mount	0.77 lb	349.27 g	24 W	IP67	34 V	48 V	Constant Current Voltage	80 %	50 °C	-20 C	1	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1.05A 16 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
