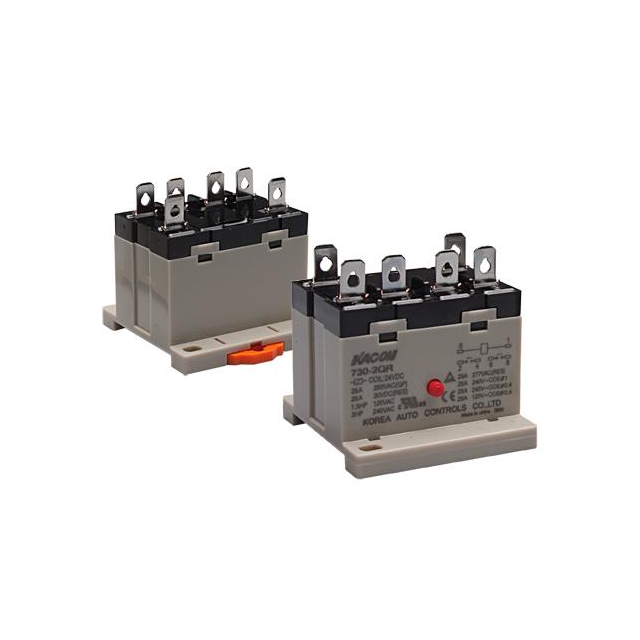

730-2QR-24VDC

Active

Kacon

RELAY GEN PURPOSE DPST 25A 24V

Search across all available documentation for this part.

Active

Kacon

RELAY GEN PURPOSE DPST 25A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage	Release Time	Operate Time	Contact Material	Termination Style	Features	Contact Rating (Current)	Contact Form	Coil Voltage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Coil Current
Kacon 730-2QR-24VDC	30 VDC 277 VAC	30 ms	30 ms	Silver Alloy	Quick Connect - 0.250" (6.3mm)	Test Button	25 A	DPST-NO (2 Form A)	24 VDC	DIN Rail	-10 °C	60 °C	General Purpose
Kacon 730-2QR-110VAC	30 VDC 277 VAC	30 ms	30 ms	Silver Alloy	Quick Connect - 0.250" (6.3mm)	Test Button	25 A	DPST-NO (2 Form A)	110 VAC/DC	DIN Rail	-10 °C	60 °C	General Purpose	24.5 mA
Kacon 730-2QR-220VAC	30 VDC 277 VAC	30 ms	30 ms	Silver Alloy	Quick Connect - 0.250" (6.3mm)	Test Button	25 A	DPST-NO (2 Form A)	220 VAC/DC	DIN Rail	-10 °C	60 °C	General Purpose	11.8 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.76

General part information

General Purpose Relay DPST-NO (2 Form A) 24VDC Coil DIN Rail
